Square D Homeline 20-Amp Single-Pole Standard Trip Circuit Breaker, 120/240V, 10kA AIR (HOM120CP)
Homeline 20A Single-Pole Circuit Breaker
Protect branch circuits with this Square D Homeline 20-amp standard trip breaker. Built for Homeline load centers and CSEDs, it offers thermal-magnetic protection against overloads and short-circuits and is rated 120/240V with a 10,000 AIR interrupting capacity.
Key Features:
- Reliable Protection: Thermal-magnetic standard trip safeguards circuits from overloads and short-circuits

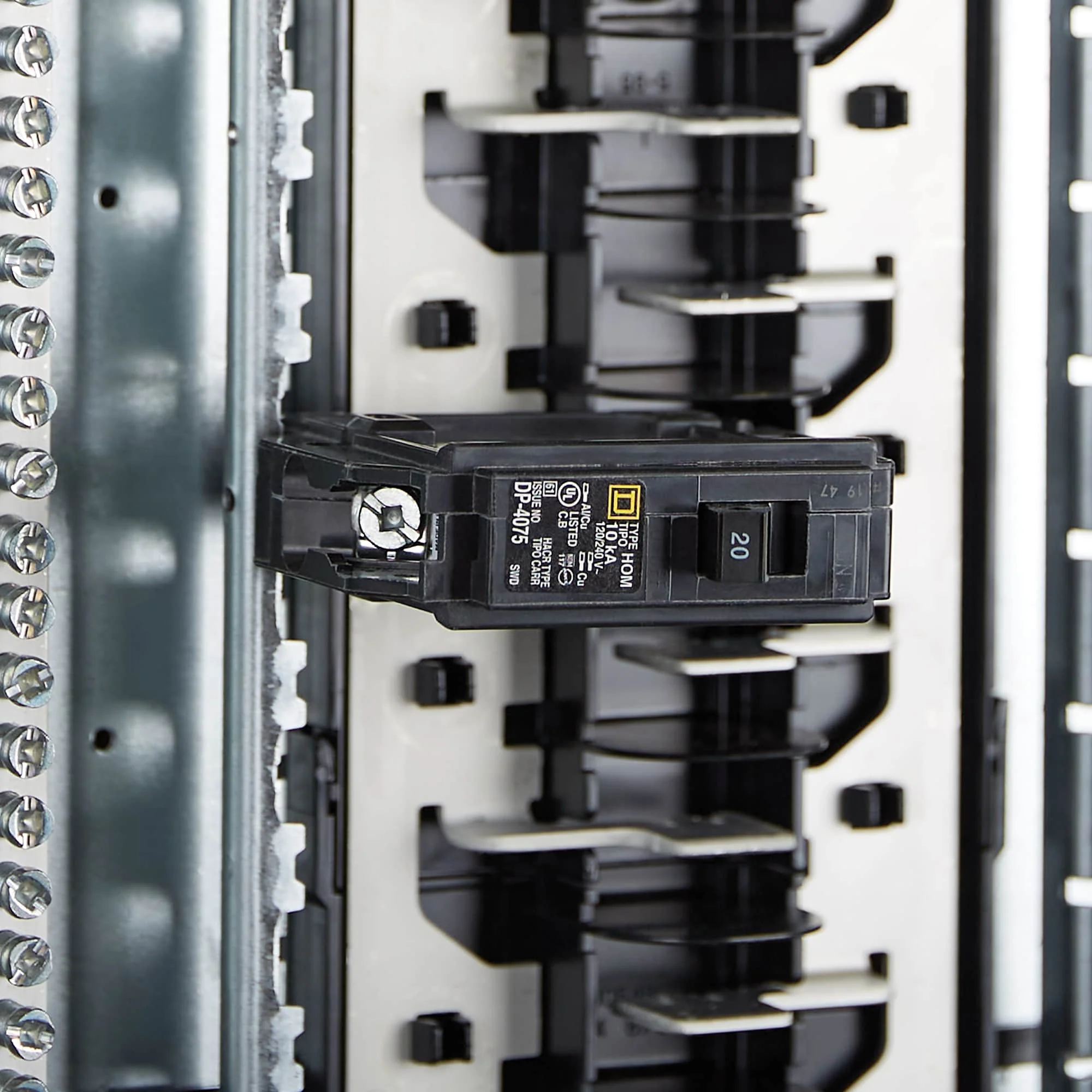

- Homeline Compatibility: Designed for Homeline load centers and CSEDs; fits 1-space panels
- Easy Installation: Plug-in design for quick, straightforward panel mounting
- Residential/Commercial Use: Suitable for whole branch circuit protection in homes and light commercial settings
- SWD Rated: Switching duty rating for 20A single-pole applications
Specifications Table:
| Specification | Details |
|---|---|
| Series Name | Homeline |
| Type | Standard trip, thermal-magnetic |
| Power Capacity | 20 amp |
| Number of Poles | 1 |
| Circuit Breaker Voltage | 120/240 VAC |
| Interrupting Rating | 10,000 AIR |
| Phase | Single phase (120/240) |
| Plug-On Neutral | No |
| Surge Protection | No |
| Ground Fault Protection | No self test (not GFCI) |
| Safety Listing | UL listed; ANSI certified |
| Warranty | 1-year limited |
| Width Measurement | 1 in |
| Dimensions | 3.13 in H x 2.98 in D x 1 in W |
| Mounting | Plug-in design |
| SWD Rating | Switching Duty (20A single-pole) |
Frequently Asked Questions (FAQ):
Q: Is this breaker compatible with my Homeline panel?
A: Yes, it is designed for Square D Homeline load centers and CSED devices and fits panels with one space.
Q: What voltage and interrupt rating does it support?
A: It is rated for 120/240 VAC with a 10,000 AIR (interrupting capacity).
Q: Does it provide ground fault or surge protection?
A: No. This is a standard trip breaker without built-in GFCI or surge protection.
Q: Can it be used as a light switch?
A: It carries an SWD (Switching Duty) rating for 20A single-pole breakers, allowing switching of fluorescent lighting loads per listing.
Q: What certifications does it have?
A: UL safety listed and ANSI certified per the product listing.
Streamlined Safety with a Minimalist Profile
This compact breaker brings clean, purposeful design to your electrical panel, marrying form and function with quiet confidence. Its crisp single-pole silhouette and intuitive lever keep the look orderly while delivering dependable protection. Pair it with a well-labeled panel for a tidy, professional finish that elevates utility into design. For a polished home infrastructure, this reliable component is an understated essential.
Upgrade your panel with dependable Homeline protection—add this 20A breaker to your cart today.
