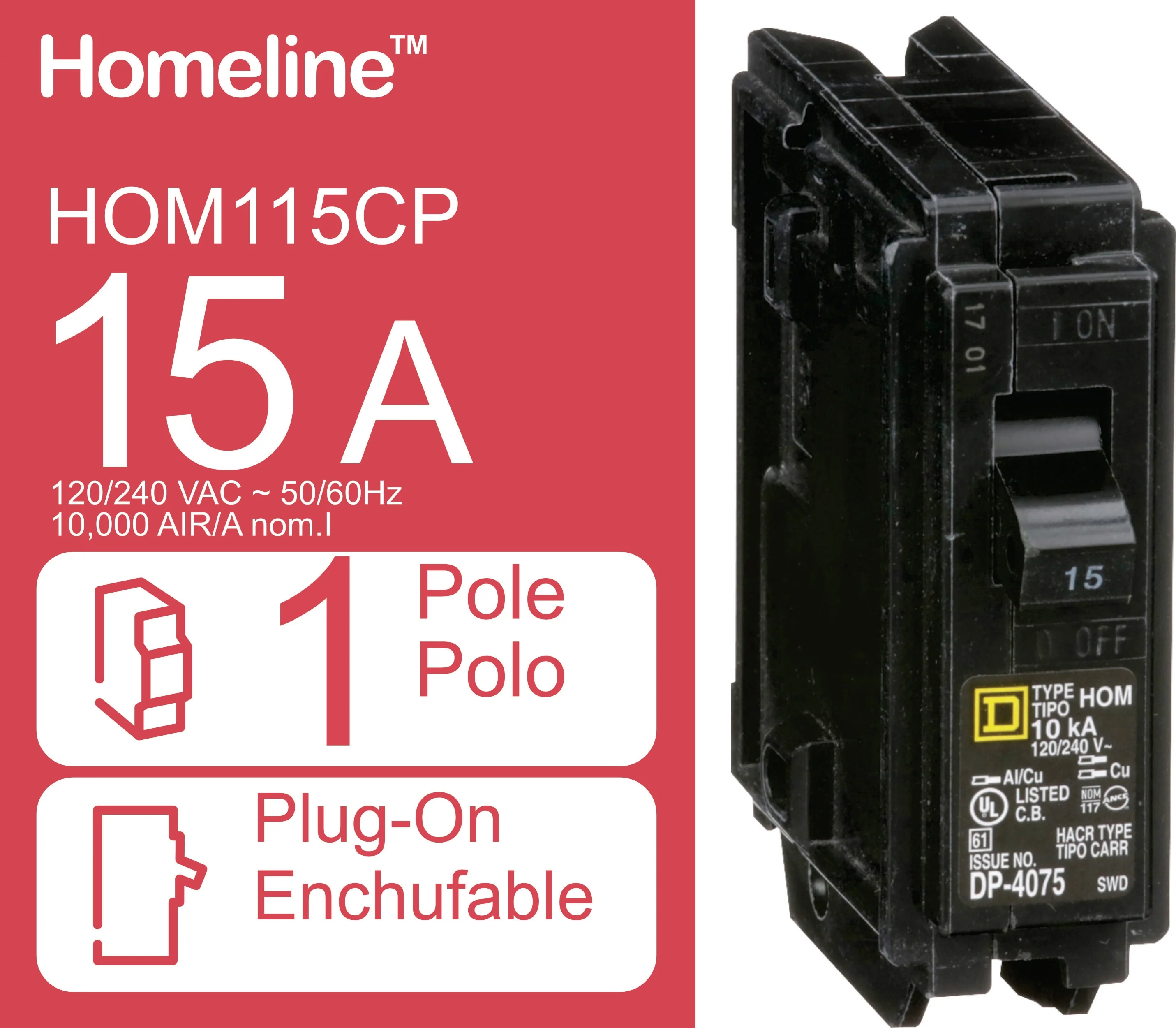

Square D Homeline 15-Amp 1-Pole Standard Trip Plug-On Circuit Breaker, HOM115CP
Homeline 15A Single-Pole Circuit Breaker
This Square D Homeline 15-amp, 1-pole standard trip breaker provides reliable overload and short-circuit protection for residential branch circuits. The plug-in design installs easily in Homeline load centers and CSEDs, and it’s rated 120/240 VAC with a 10,000 AIR interrupt rating.
Key Features:

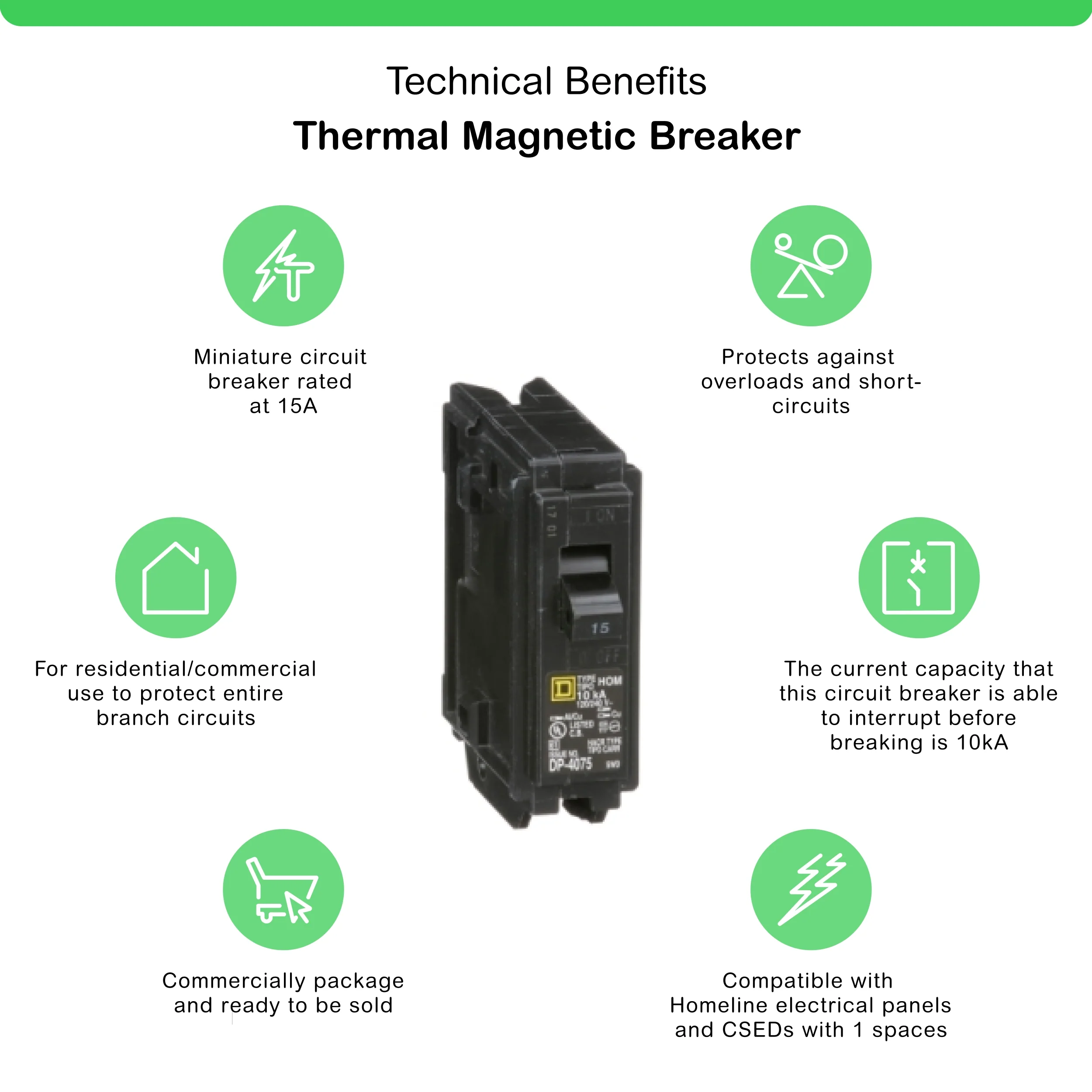

- Reliable Protection: Standard trip thermal-magnetic breaker guards branch circuits from overloads and short-circuits
- Easy Plug-On Install: Fits Homeline load centers and CSED devices using one space
- Residential-Ready Performance: 15A, 1-pole, 120/240 VAC rated with 10,000 AIR interrupt capacity
- UL Listed Quality: UL safety listing with SWD rating for 15A one-pole switching duty
- Compact Size: Slim 1-in width for straightforward panel compatibility
Specifications Table:
| Specification | Details |
|---|---|
| Series Name | Homeline |
| Type | Standard trip, thermal-magnetic |
| Amperage | 15 A |
| Number of Poles | 1 |
| Voltage Rating | 120/240 VAC |
| Interrupting Rating (AIR) | 10,000 A |
| Phase | Single phase (120/240) |

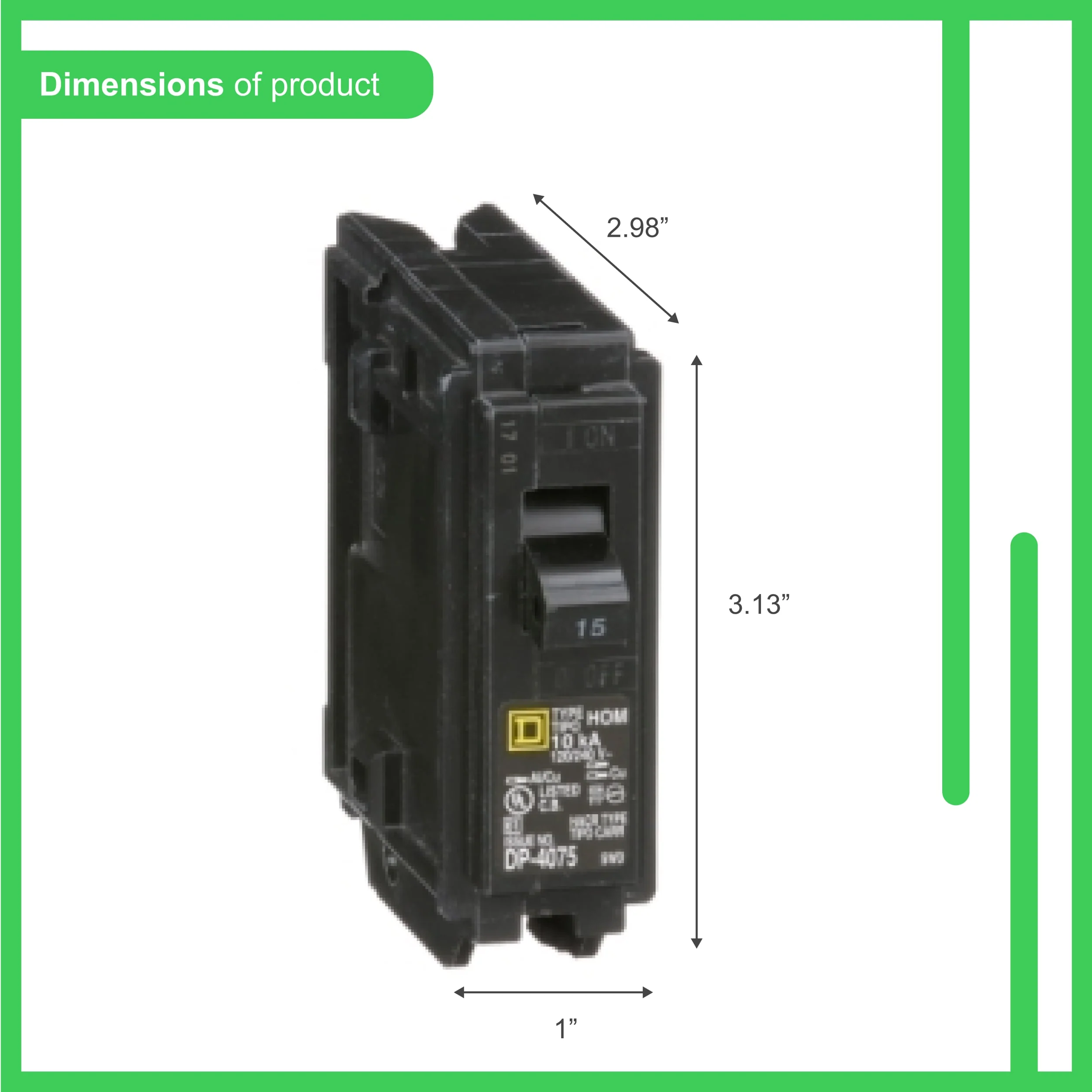

| Width | 1 in |
| Height | 3.13 in |
| Depth | 2.98 in |
| Plug-On Neutral | No |
| Surge Protection | No |
| Ground Fault Protection | No self test (not GFCI) |
| Safety Listing | UL Listed |
| Warranty | 1-year limited |
| Switching Duty Rating (SWD) | Yes, for 15A 1-pole |
| Category | Circuit Breakers |
Frequently Asked Questions (FAQ):
Q: Is this breaker compatible with my panel?
A: It is designed for Square D Homeline load centers and CSED devices only; it will not fit QO or other brands.
Q: What is the interrupt rating?
A: 10,000 AIR at 120/240 VAC.
Q: Can it be used for lighting circuits?
A: Yes—this 15A 1-pole breaker carries an SWD rating suitable for switching fluorescent lighting loads.
Q: Does it require tools to install?
A: It is a plug-on design; follow panel instructions and local codes—installation should be done by a qualified person.
Q: Does it provide GFCI or AFCI protection?
A: No, this is a standard trip breaker without GFCI or AFCI functions.
Streamlined Power With a Minimal Footprint
Clean lines and a compact 1-inch profile make this Homeline breaker a quiet hero behind the scenes. The matte black housing and crisp actuator feel purposeful—utility with poise. Specify it to keep panels tidy and accessible; pair with labeled directories for a polished, professional finish. It’s the discreet foundation of dependable, modern living.
Choose this Homeline 15A breaker for fast, dependable branch-circuit protection that installs in minutes.
