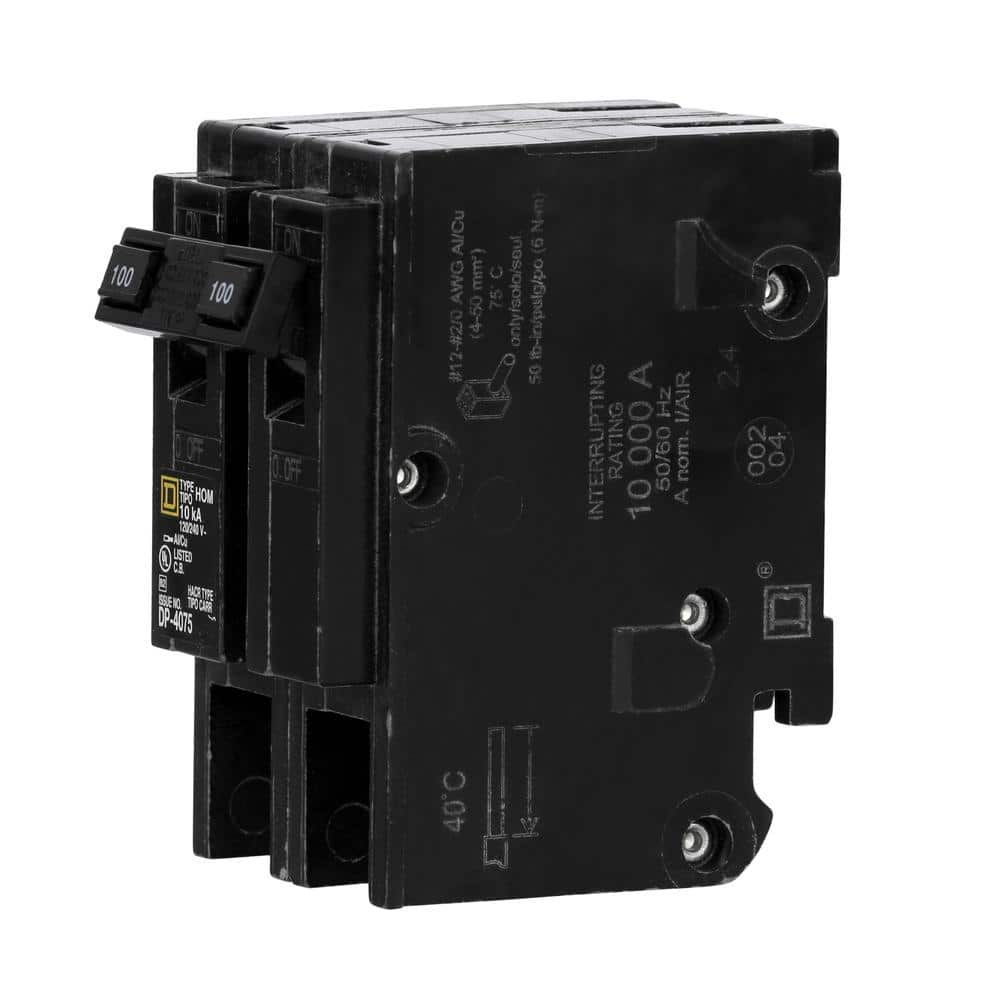

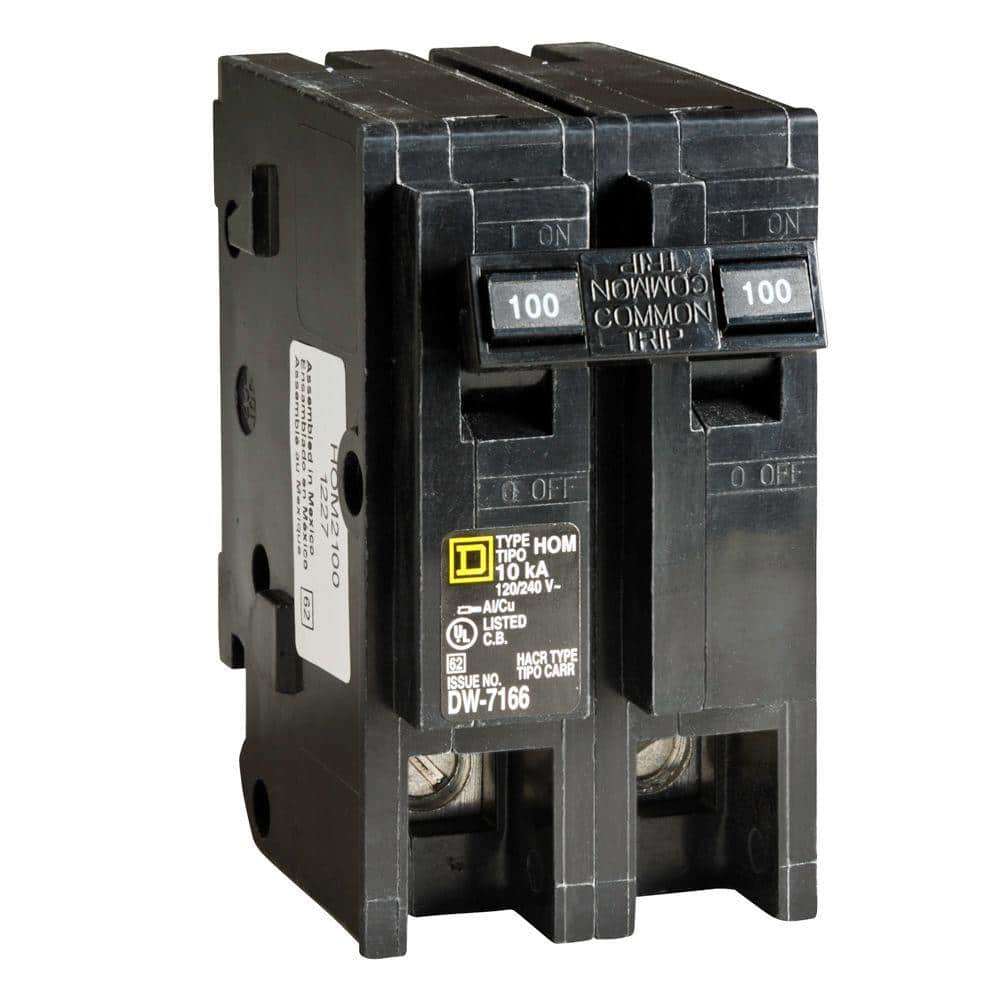

Square D Homeline 100-Amp 2-Pole Standard Trip Circuit Breaker, HOM2100C
Square D Homeline 100A 2-Pole Circuit Breaker
This Square D Homeline 2-pole breaker provides reliable overload and short-circuit protection for residential branch circuits. Rated 100A at 120/240V with a 10kA interrupt rating, it features a plug-on design for quick installation in Homeline load centers and CSEDs.
Key Features:
- Thermal Magnetic Protection: Standard trip unit safeguards against overloads and short circuits
- Homeline Compatibility: Plug-on design fits Homeline load centers and CSEDs with 2 spaces
- Robust Performance: 100A rating, 120/240 VAC, 10,000 AIR interrupting capacity
- Durable Build: UL Listed and ANSI certified for dependable residential use
- Easy Installation: Compact 2-pole form factor simplifies panel layout
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Type | Main Breaker |
| Interruption Type | Standard Trip |
| Trip Unit | Thermal Magnetic |
| Maximum Amperage | 100 A |
| Voltage | 120/240 VAC |
| Number of Poles | 2 (Double) |
| Mounting Type | Plug-On |
| AIC Rating | 10,000 AIR |
| Certifications | UL Listed, ANSI Certified |
| Product Weight | 0.88 lb |
| Product Dimensions | 2.98 in D x 2 in W x 3.13 in H |
| Pack Size | 1 |
Frequently Asked Questions (FAQ):
Q: Is this breaker compatible with all Square D panels?
A: It is designed for Square D Homeline load centers and CSED devices; it will not fit QO series panels.
Q: What is the interrupt rating?
A: 10,000 AIR at 120/240 VAC.
Q: What type of trip unit does it use?
A: Thermal-magnetic, standard trip.
Q: What wire sizes are supported?
A: See the product labeling/spec sheet for approved conductor sizes; typical range is for copper or aluminum conductors appropriate for 100A breakers in Homeline panels.
Q: Is it UL listed?
A: Yes, it is UL Listed and ANSI certified.
Sleek, Safe Power for Modern Panels
Quiet confidence meets essential performance—this Homeline breaker tucks neatly into your panel while delivering steadfast protection. The bold twin-toggle face and compact geometry keep the look clean and purposeful. Pair it with a well-organized, clearly labeled load center to elevate both safety and aesthetics. It’s the discreet backbone of a luxurious, well-powered home.
Upgrade your panel with reliable Square D protection—add this Homeline 100A 2-pole breaker to your cart today.
