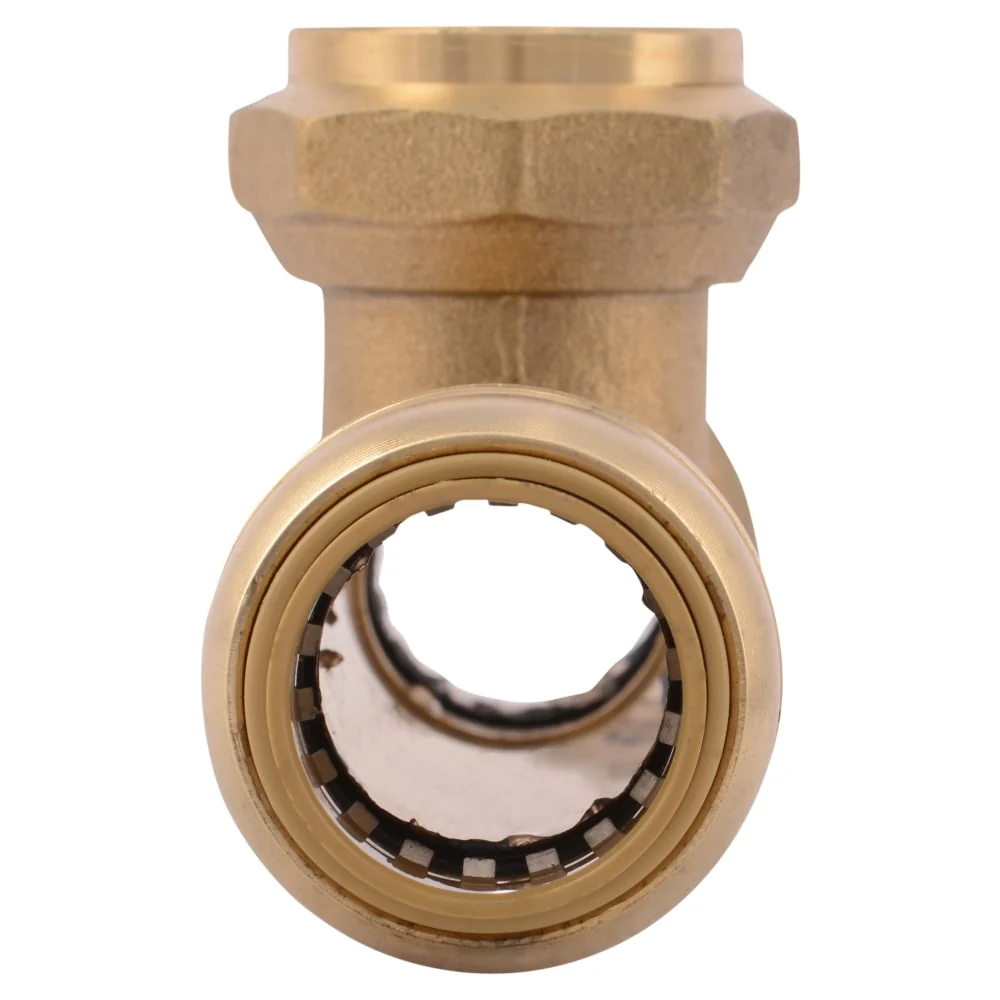

SharkBite 3/4-in Push-to-Connect x 3/4-in Push-to-Connect x 3/4-in dia Expansion Tank Tee Push Fitting
SharkBite 3/4-in Expansion Tank Slip Tee, Push-to-Connect
This SharkBite brass expansion tank tee creates a fast, reliable 3/4-in connection for copper or CPVC without solder or glue. The push-to-connect design installs in tight spaces and is rated for 200 PSI at 200°F, ideal for water heater expansion tank tie-ins and emergency repairs.
Key Features:
- Tool-Free Installation: Push-to-connect ends allow quick repairs on wet or dry lines with no soldering or glue.
- Durable Brass Body: Low-lead DZR corrosion-resistant brass with stainless steel teeth and chlorine-resistant O-ring.
- Versatile Compatibility: Connects copper and CPVC; approved for behind-the-wall and underground use (wrap when burying).
- High Performance Ratings: Rated to 200°F and 200 PSI; IAPMO listed and code approved.
- Serviceable Design: Removable and reusable with included disconnect clip; great for burst-pipe emergencies.
Specifications Table:
| Specification | Details |
|---|---|
| Type | Tee |
| Sub Type | Expansion tank tee / slip tee |
| Diameter (End 1) | 3/4-in |
| Diameter (End 2) | 3/4-in |
| Diameter (End 3) | 3/4-in |
| Connection Type (End 1) | Push-to-connect |
| Connection Type (End 2) | Push-to-connect |
| Connection Type (End 3) | FNPT on branch (expansion tank) per product title; push-to-connect ends on run |
| Material | Low-lead DZR brass |
| For Use with Copper | Yes |
| For Use with CPVC | Yes |
| For Use with PEX | No |
| For Use with PVC DWV | No |
| For Use with ABS DWV | No |
| For Use with Polybutylene | No |
| For Use with RVs | Yes |
| Maximum Working Temperature (F) | 200 |
| Minimum Working Temperature (F) | 33 |
| Maximum Working Pressure (PSI) | 200 |
| Removable | Yes (with disconnect clip) |
| Common Use | Connecting copper and CPVC in expansion tank applications; repairs on burst pipes |
| Code Approvals | Design certified and listed to ASSE 1061, NSF/ANSI 61, NSF/ANSI 14, NSF/ANSI 372; IAPMO listed; meets UPC, IPC, cUPC |
| Safety Listing | IAPMO |
| Warranty | 25-year limited |
| Package Quantity | 1 |
| UNSPSC | 40141700 |
| CA Prop 65 Warning | Yes |
Frequently Asked Questions (FAQ):
Q: What pipe types does this tee work with?
A: It connects to copper and CPVC (not for PEX or PVC DWV).
Q: Can it be installed on a pressurized or wet line?
A: Yes, it can be installed on wet or dry lines and pressure tested immediately.
Q: Is it code approved for concealed installations?
A: Yes, it’s IAPMO listed and approved for behind-the-wall and underground use; wrap when burying.
Q: What are the temperature and pressure ratings?
A: Rated up to 200°F and 200 PSI.
Q: Is a removal tool required?
A: Yes, use the included disconnect clip to remove or reposition the fitting.
Clean, Confident Plumbing—Invisible, Reliable Luxury
The warm brass of this SharkBite tee brings a quiet, engineered elegance to the hard-working heart of your home. Its sleek push-to-connect ends create a seamless look while delivering rock-solid performance. Use it to streamline an expansion tank tie-in and keep mechanical rooms crisp and clutter-free. Consider it the discreet finishing touch that supports a truly elevated living experience.
Upgrade your expansion tank connection with this SharkBite push-to-connect tee for a fast, code-approved install that lasts.
