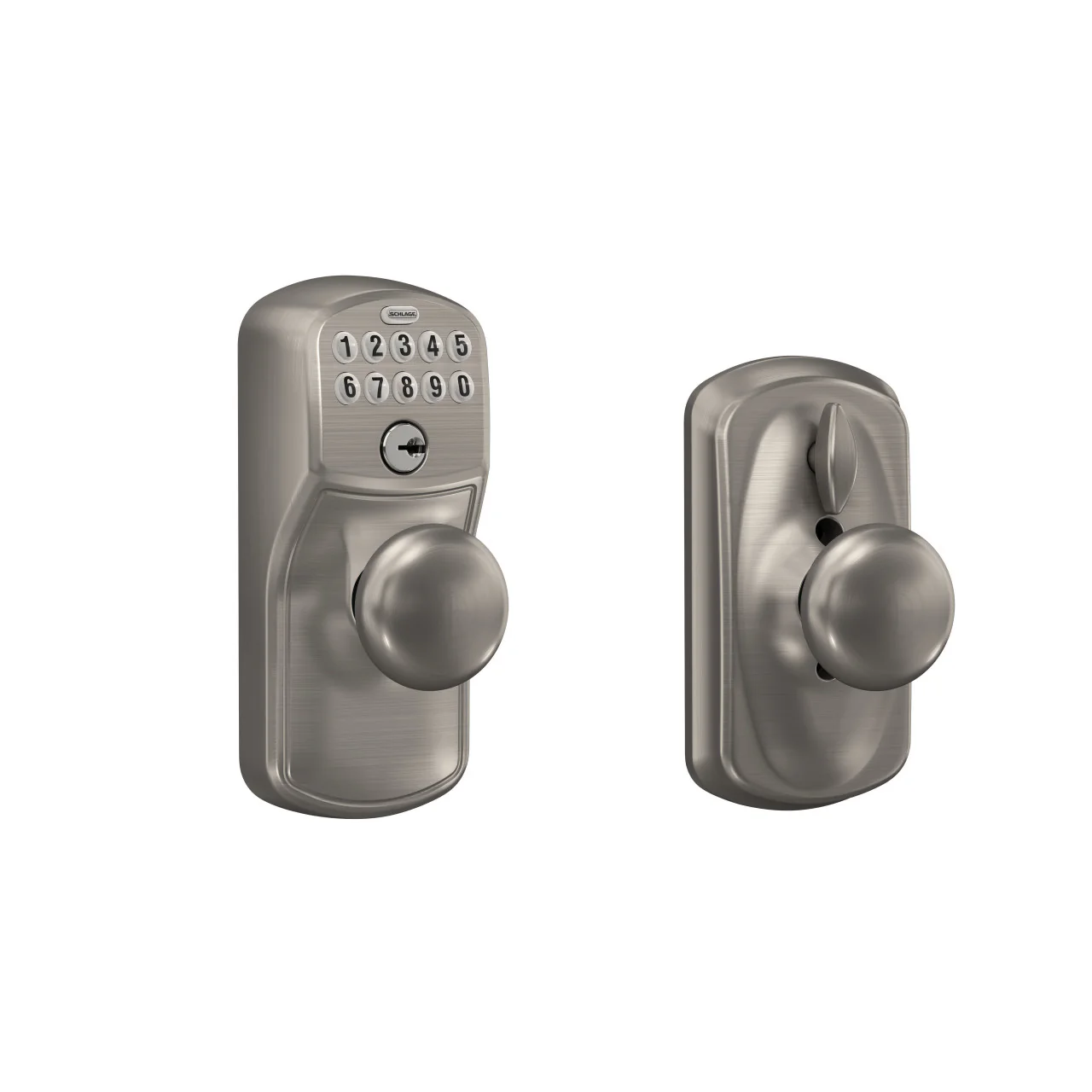

Schlage Plymouth Satin Chrome Electronic Keypad Door Lock with Orbit Knob
Plymouth Electronic Keypad Lock with Orbit Knob
Upgrade entry security with Schlage’s Plymouth electronic keypad lock featuring the Orbit knob. Flex-Lock technology lets you switch between automatic re-locking and unlocked modes, while the durable Grade 2 construction delivers reliable performance for residential or light commercial doors.
Key Features:
- Flex-Lock Convenience: Toggle between automatic re-locking and unlocked passage with an interior switch
- Keyless Access: Two pre-set 4-digit codes included; program up to 19 unique user codes
- Durable Construction: ANSI/BHMA Grade 2 rating with high-quality metal build for long-lasting security
- Easy DIY Installation: Installs with a screwdriver; fits standard 1-3/8 in to 1-3/4 in thick doors and 2-3/8 in or 2-3/4 in backsets
- Battery Powered: Runs on one 9V battery with low-battery indicator and backlit silicone keypad
Specifications Table:
| Specification | Details |
|---|---|
| Trim/Collection | Plymouth with Orbit Knob |
| Finish | Satin (appearance consistent with Satin Chrome/Nickel imagery) |
| Power Source | 1 x 9V battery |
| User Codes | Up to 19 codes; 2 pre-set 4-digit codes included |
| Keyway | 5-pin tumbler C keyway; includes one nickel silver key |
| Door Thickness | 1-3/8 in to 1-3/4 in |
| Backset | Fits 2-3/8 in (60 mm) or 2-3/4 in (70 mm) |
| Certifications | ANSI/BHMA A156.2-2011 Grade 2 |
| Operating Temperature (Exterior) | -35°C to 66°C |
| Operating Temperature (Interior) | -10°C to 50°C |
| Keypad | Silicone-coated, backlit numbers |
| Locking Feature | Flex-Lock (toggle between unlocked or auto re-lock) |
| Warranty | Limited Lifetime Mechanical & Finish; 3-Year Electronics |
| Dimensions (Exterior Escutcheon) | 3.01 in x 6.84 in x 6.85 in |
Frequently Asked Questions (FAQ):
Q: Does this lock require hardwiring?
A: No. It is battery powered with a single 9V battery and installs with a screwdriver.
Q: How many user codes can I program?
A: Up to 19 unique access codes, plus two pre-set codes included out of the box.
Q: What door sizes will it fit?
A: Fits standard doors 1-3/8 in to 1-3/4 in thick with 2-3/8 in or 2-3/4 in backsets.
Q: Is it suitable for outdoor temperatures?
A: Yes. Outside escutcheon rated for approximately -35°C to 66°C; inside escutcheon -10°C to 50°C.
Q: What warranties are included?
A: Limited lifetime mechanical and finish warranty, plus a 3-year electronics warranty.
Streamlined Security with Subtle Modern Gleam
The Plymouth keypad lock introduces a refined, satin sheen that feels effortlessly current while honoring classic forms. The rounded Orbit knob softens the silhouette, adding a sculptural note to entryways. Pair it with brushed hardware and a minimalist door slab to let the backlit keypad glow like jewelry at dusk. It’s a smart, stylish essential that elevates everyday luxury at the front door.
Secure your entry in minutes—choose the Schlage Plymouth keypad lock for reliable, keyless convenience and style.
