Rev-A-Shelf Heavy-Duty Mixer Lift with Soft-Close and Maple Shelf, 11-3/4 in W x 20 in D Platform (ML Series)
Rev-A-Shelf Heavy-Duty Soft-Close Mixer Lift with Shelf
Bring your stand mixer to counter height with a heavy-duty, soft-close lift that tucks neatly back into your cabinet. The ML Series features a solid maple shelf and a powder-coated steel frame with adjustable spring tension to handle appliances up to 60 lb.
Key Features:
- Soft-Close Mechanism: Built-in shock dampeners provide smooth, controlled lifting and lowering
- Heavy-Duty Capacity: Adjustable spring tension supports appliances from 0–60 lb
- Maple Shelf Included: 11-3/4 in W x 20 in D x 1-3/8 in H platform with clear polyurethane finish
- Durable Construction: Powder-coated metal frame with solid bottom surface for stability
- Side-Mount Installation: Fits full-height cabinets; minimum opening typically 15 in wide (B18)

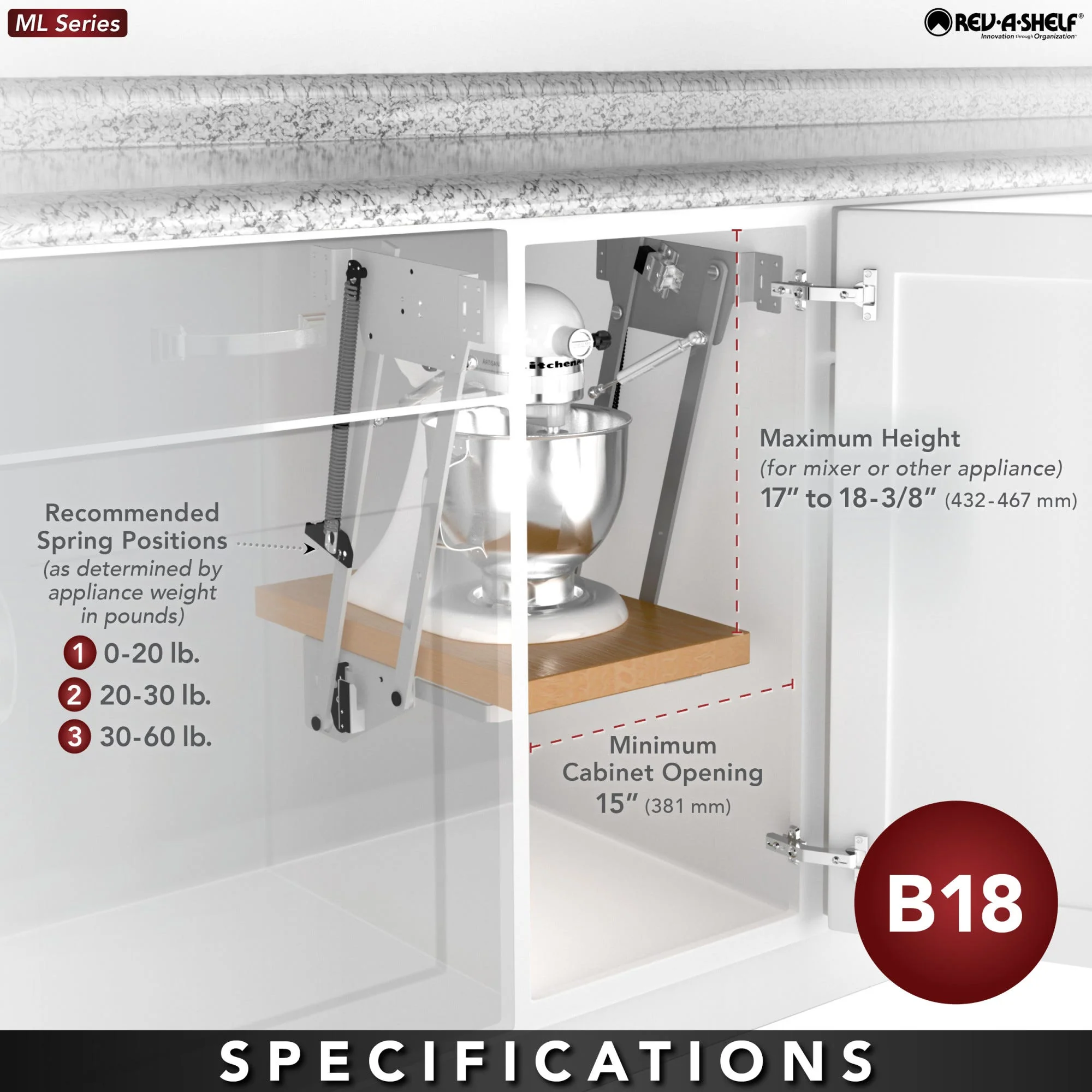

Specifications Table:
| Specification | Details |
|---|---|
| Series | ML Series |
| Product type | Heavy-Duty Mixer Lift with Shelf |
| Included shelf dimensions | 11-3/4 in W x 20 in D x 1-3/8 in H |
| Frame material | Powder-coated metal frame with solid bottom surface |
| Shelf material/finish | Maple, clear polyurethane finish |
| Number of shelves | 1 |
| Installation type | Cabinet side mounted; full-height cabinet required |
| Weight capacity | Up to 60 lb with adjustable spring positions (0–20 lb, 20–30 lb, 30–60 lb) |
| Minimum cabinet opening (width) | 15 in (B18 example shown) |
| Maximum appliance height on lift | 17 in to 18-3/8 in |
| Cabinet depth (required) | 24 in |
| Clearance below mechanism (lowest point) | 4-3/8 in |
| Face frame clearance at top | 1-1/2 in |
| TSCA Title VI compliant | Yes |
| Country of origin | China |
| Door mountable | No |
Frequently Asked Questions (FAQ):
Q: What is the weight capacity?
A: Up to 60 lb with adjustable spring positions for different appliance weights.
Q: Is the shelf included?
A: Yes, a maple shelf measuring 11-3/4 in W x 20 in D x 1-3/8 in H is included.
Q: What cabinet do I need?
A: A full-height base cabinet with approximately 24 in depth; minimum opening around 15 in width as shown in specs.
Q: Does it have soft-close?
A: Yes, built-in soft-close shock dampeners ensure smooth operation.
Q: Can it be door-mounted?
A: No, the unit is side-mounted inside the cabinet and is not door-mountable.

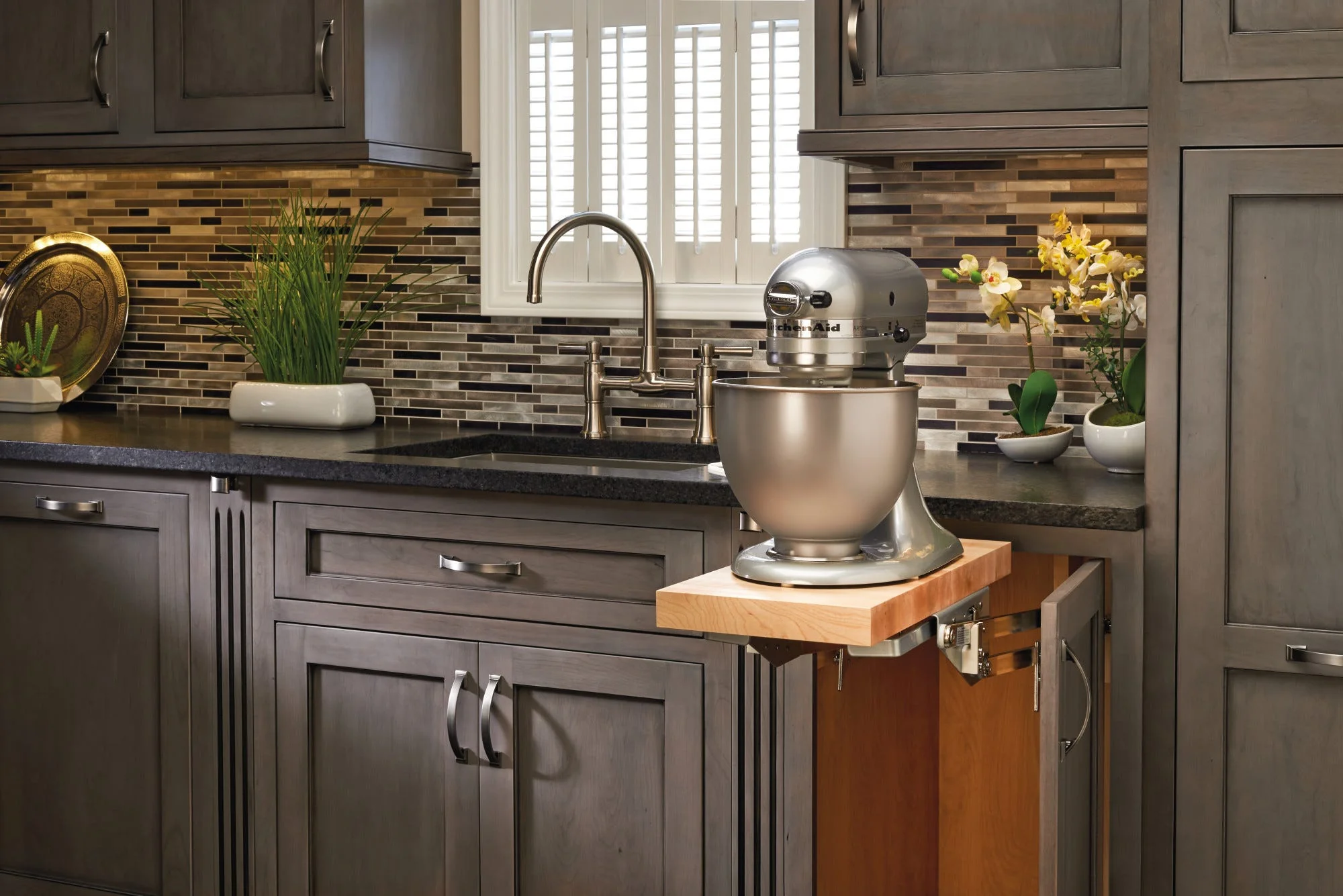

Elevate Your Culinary Workhorse in Style
This lift transforms your kitchen choreography—your mixer rises gracefully from its hidden cove to a handsome maple stage. The refined soft-close action and powder-coated hardware feel tailored and deliberate. Style the maple platform with a neutral silicone mat or a polished steel turntable to echo your fixtures. It’s a discreet luxury that keeps counters serene while keeping performance at the ready.
Upgrade your base cabinet with this soft-close mixer lift and enjoy instant, clutter-free counter space for your heaviest appliances.
