Project Source 20000S Series New Construction 23-1/2-in x 29-1/2-in x 2-1/4-in Jamb White Vinyl Single-Pane Single-Hung Window, Half Screen Included
23.5-in x 29.5-in White Vinyl Single-Hung Utility Window
Durable vinyl single-hung utility window for new construction with single-pane Low-E glass and a half insect screen. Welded frame, integrated nail fin and J-channel simplify installation while the bottom sash tilts for easy cleaning. Ideal for garages, porches, barns and outbuildings.
Key Features:
- Built for Utility Spaces: Single-pane Low-E glass and half screen suited for garages, porches, barns, and steel buildings
- Durable Vinyl Frame: Welded seams and integrated nail fin/J-channel for reliable, hassle-free installation
- Easy Cleaning: Bottom sash tilts in for convenient interior maintenance
- Clear Opening: 22-in x 9.5-in opening provides ventilation while keeping insects out
- Actual/Rough Sizes: Actual 23-1/2-in W x 29-1/2-in H; rough opening/common size 24-in x 30-in
Specifications Table:
| Specification | Details |
|---|---|
| Series Name | 20000S Series |
| Actual Size (W x H) | 23-1/2-in x 29-1/2-in |
| Common Size (W x H) | 24-in x 30-in |
| Rough Opening Size (W x H) | 24-in x 30-in |
| Jamb Depth Measurement | 2-1/4-in |
| Clear Opening Size (W x H) | 22-in x 9-1/2-in |
| Clear Opening Sq Ft | 1.45 |
| Frame Material | Vinyl |
| Exterior Color/Finish | White |
| Interior Color/Finish | White |
| Hardware Color/Finish | White |
| Frame Profile | Flat |
| Glazing Type | Single pane |
| Glass Insulation | Low-E |
| Glass Strength | Single strength |
| Grid Included | No |

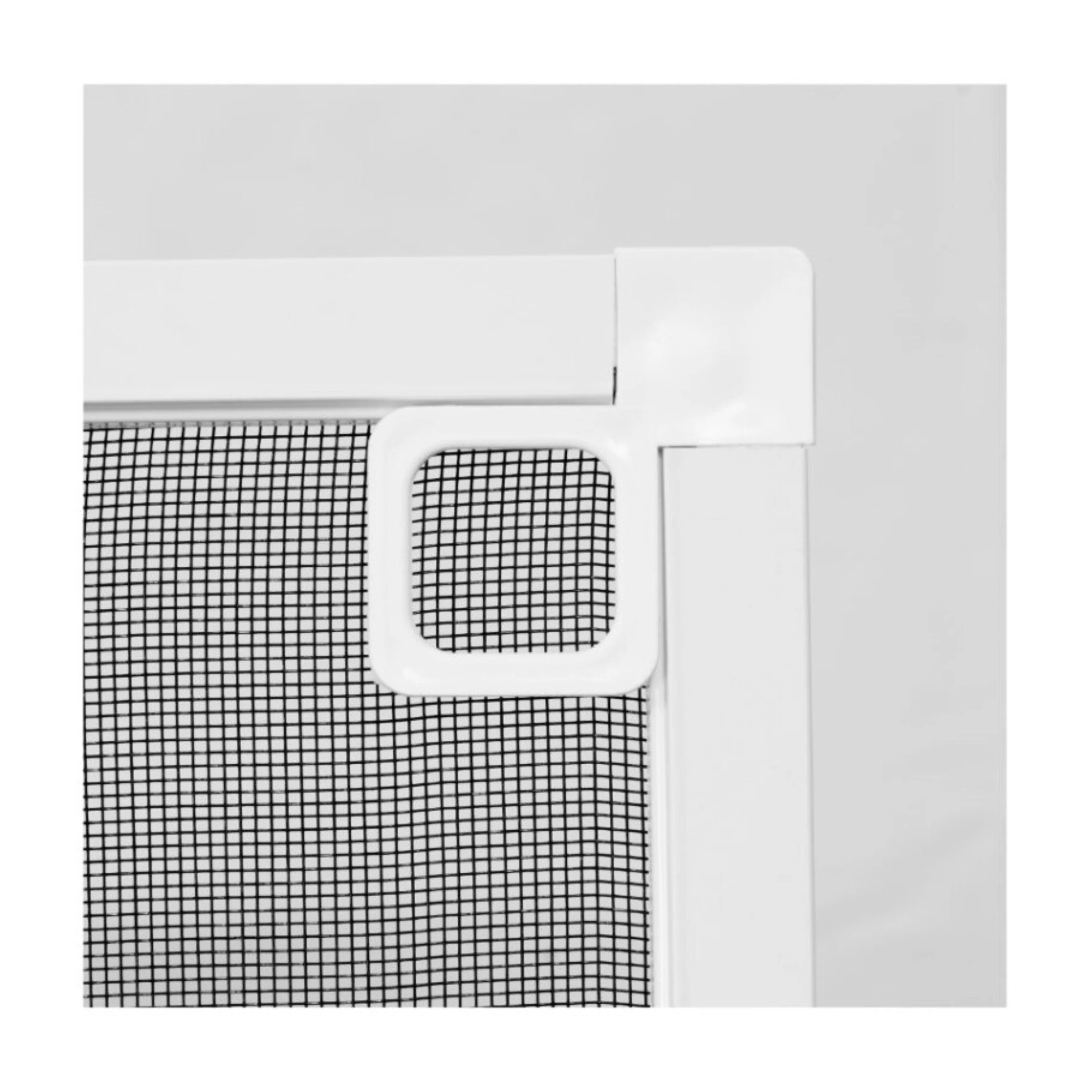

| Insect Screen Included | Yes |
| Screen Included | Half |
| Screen Type | Fiberglass mesh |
| Screen Frame Type | Roll-form |
| Lock Type | Cam |
| Number of Locks | 1 |
| Balance System | Constant force |
| Nail Fin | Integrated |
| J Channel | Integrated |
| Project Type | New construction |
| Tilting | No (bottom sash tilts for cleaning) |
| Tilt Mechanism | Raised |
| Argon Gas Insulated | No |
| Impact Resistant | No |
| Obscure Glass | No |
| Paintable | No |
| For Use with Mobile Homes | No |
| High Altitude Rated | No |
| Design Pressure (DP) Rating | 0 |
| Solar Heat Gain Coefficient (SHGC) | 0.03 |
| U Value | 0.29 |
| Sound Transmission Control (STC) Rated | No |
| ENERGY STAR Certified North/Central Zone | No |
| ENERGY STAR Certified Northern Zone | No |
| ENERGY STAR Certified South/Central Zone | No |
| ENERGY STAR Certified Southern Zone | No |
| Florida Product Approved | No |
| Hurricane Approved | No |
| Miami Dade Approved | No |
| Texas Department of Insurance Approved | No |
| Meets CA Forced Entry Requirements | No |
| Meets Wildland Urban Interface | No |
| Warranty | Limited lifetime |
| UNSPSC | 30171600 |
Frequently Asked Questions (FAQ):
Q: Is the screen included?
A: Yes, a heavy-weight fiberglass half screen is included.
Q: What is the jamb depth?
A: 2-1/4 inches.
Q: Is this window ENERGY STAR certified?
A: No, it is not ENERGY STAR certified.
Q: Can the sash tilt for cleaning?
A: Yes, the bottom sash tilts in for easy cleaning.
Q: What type of project is this intended for?
A: New construction; it includes an integrated nail fin and J-channel.
Clean Utility Style with Everyday Ease
This crisp white single-hung window brings a fresh, tailored look to hardworking spaces. The slim, welded vinyl frame keeps sightlines clean while the integrated half screen adds subtle texture. Pair it with painted beadboard and matte black hardware for a charming, functional vibe. A smart essential that elevates utility rooms, porches, and workshops with effortless polish.
Upgrade your utility space with this easy-to-install, durable window—order now for clean lines, fresh light, and dependable performance.
