Makita 12V max CXT Lithium‑Ion 3/8 in. Brushless Cordless Hammer Driver‑Drill, Tool Only (PH05Z)
12V Brushless 3/8 in. Cordless Hammer Driver‑Drill (Tool Only)
This ultra‑compact Makita 12V max CXT brushless hammer driver‑drill delivers up to 280 in.-lbs. of torque with a 2‑speed transmission for drilling, driving, and light masonry work. The slide‑style 12V CXT platform enhances balance, while a keyless 3/8 in. chuck and built‑in LED boost convenience in tight spaces.
Key Features:

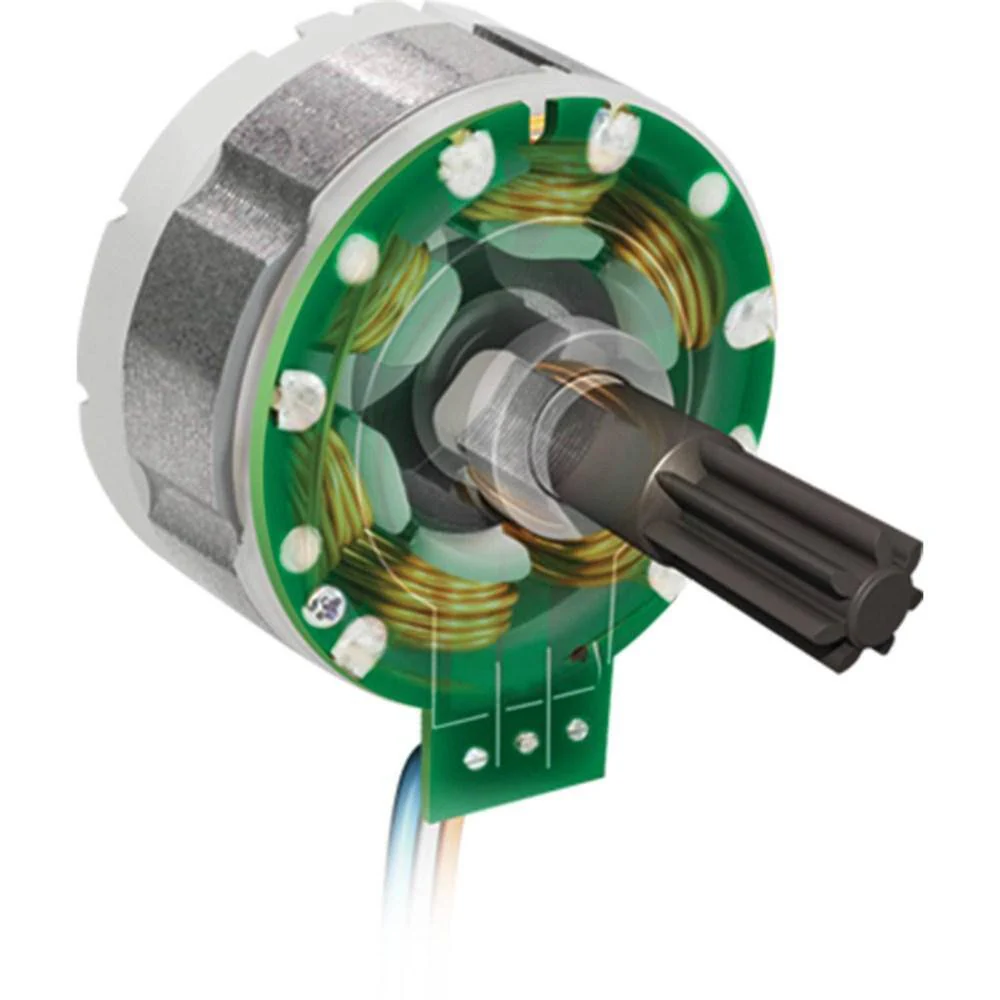

- Brushless Motor Efficiency: BL brushless motor delivers 280 in.-lbs. max torque and runs cooler for longer life
- 2-Speed Power Control: Mechanical transmission (0–450 and 0–1,500 RPM) plus 0–6,750/0–22,500 BPM for masonry
- Compact, Ergonomic Design: Only 6-5/8 in. long and about 2.5 lb. tool weight for reduced fatigue
- Quick Bit Changes: 3/8 in. keyless chuck with 20 clutch settings for precise fastening
- Worksite Ready: Built-in LED light and rubberized soft grip; battery protection circuit when used with CXT batteries
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Battery Amp Hours | No Battery |
| Battery Power Type | Lithium Ion |
| Battery Voltage | 12V |
| Battery/Charger | Tool Only |
| Blows per Minute (BPM) | 0–6,750 / 0–22,500 |
| Charger Included | No |
| Chuck Size | 3/8 in. |
| Chuck Type | Keyless |
| Color Family | Teal |
| Cordless Tool Type | Hammer Drill |
| Cordless/Corded | Cordless |
| Drill/Driver Type | Hammer Drill |
| Included | Tool Only, Belt Clip |
| Maximum Speed (RPM) | 0–1,500 RPM (0–450 low) |
| Motor Type | Brushless |
| Number of Total Batteries Included | 0 |
| Power Tool Features | Keyless Chuck, LED Light, Variable Speed |
| Product Weight | 2.5 lb (tool only) |
| Torque | 280 in.-lbs. |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 3-year limited warranty |
| Product Depth | 3.2 in |
| Product Height | 8.6 in |
| Product Width | 7.2 in |
Frequently Asked Questions (FAQ):
Q: Does this include a battery and charger?
A: No. This is a tool‑only model (PH05Z); batteries and charger are sold separately.
Q: What batteries does it use?
A: Makita 12V max CXT slide‑style Lithium‑Ion batteries; not compatible with 12V pod‑style packs.
Q: What materials can I drill with hammer mode?
A: Hammer mode provides up to 22,500 BPM for drilling into masonry and concrete with appropriate bits.
Q: What is the maximum torque and speed?
A: Max torque is 280 in.-lbs. with 2 speeds: 0–450 and 0–1,500 RPM.
Q: Is there a warranty?
A: Yes, Makita provides a 3‑year limited warranty on the tool.
Compact Power, Clean Lines
This petite hammer drill tucks into tight corners with a sculpted, ergonomic silhouette that feels bespoke in hand. The brushless heart hums with refined strength, delivering crisp, controlled performance without the bulk. Style it on a wall-mounted rail with polished steel hooks and let the teal pop against matte black storage. It’s the chic, hardworking essential that elevates any well‑edited workshop.
Equip your toolkit with compact power—add the Makita PH05Z to your cart and tackle drilling and fastening with confidence.
