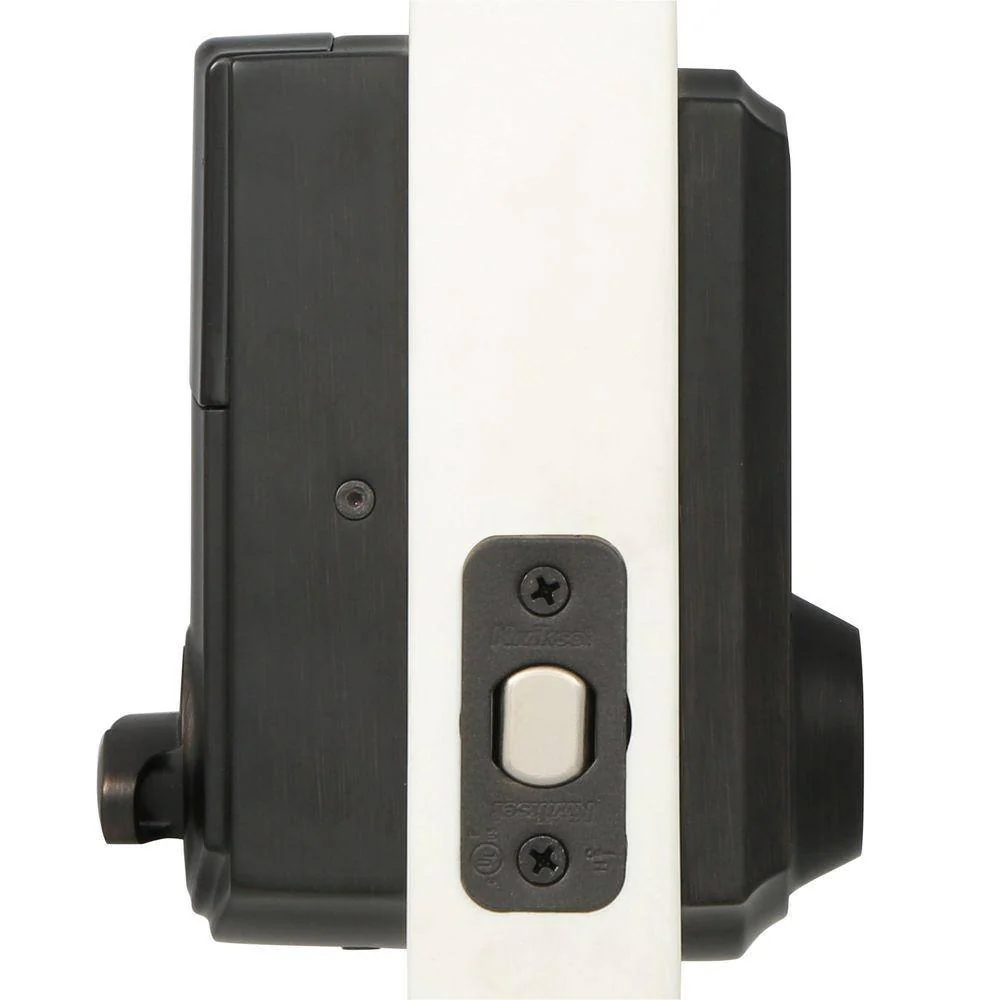

SmartCode 915 Touchscreen Electronic Deadbolt & Avalon Handleset (Venetian Bronze)

A secure, keyless entry solution combining the SmartCode 915 touchscreen electronic deadbolt with the elegant Avalon handleset and Tustin lever. Features SmartKey Security for fast re-keying, quiet motorized locking, and a durable Venetian Bronze finish designed for everyday residential use.

---

Key Features:

• Keyless Convenience: Backlit capacitive touchscreen with one-touch locking and up to 16–30 programmable user codes (model dependent)
• SmartKey Security: Rekey the KW1 keyway in seconds to match existing keys and enhance protection against advanced break-in techniques
• Flexible Locking Modes: Auto-lock, Passage, and Disable Passage modes to fit your household routine
• Easy DIY Install: Installs in minutes with a screwdriver; adjustable backset fits standard doors 1-3/8 in. to 1-3/4 in. thick
• Durable Build: Sleek metal design, ANSI/BHMA Grade 2 certified, UL listed; lifetime mechanical/finish and 1-year electronics warranty

---

Specifications Table:

Specification	Details
Finish	Venetian Bronze
Deadbolt Type	Single Cylinder Deadbolt
Electronic/Mechanical	Electronic
Connectivity	Not Connected
Smart Technology	Keypad (capacitive touchscreen)
Battery Type	AA Battery
Number of Batteries Required	4
Power Source	Battery
Commercial/Residential	Residential
Door Handing	Universal
Door Type	Entry w/ Deadbolt
Door Lock Style	Classic
Hardware Color Family	Bronze
Hardware Finish Family	Bronze
Handleset Product Type	2 Piece Front & Back
Hardware Included	Deadbolt with Handleset
Included	Drilling Template, Installation Instructions, Mounting Hardware
Keyway	KW1
Features	Adjustable Backset, Automatic Relocking, Easy Installation, Fail-Safe, Kwikset SmartKey, Rekeyable
Holding force (lb.)	50
Security/ANSI Grade	ANSI/BHMA Grade 2
Certifications and Listings	ANSI Certified, UL Listed
Manufacturer Warranty	Lifetime mechanical and finish warranty; 1-year electronics warranty
Product Weight (lb.)	2.73 lb
Backset Size (in.)	Adjustable
Deadbolt Bore Hole Diameter (in.)	1 in
Deadbolt Cross Bore Diameter (in.)	2.125 in
Deadbolt Strike Height (in.)	2.25 in
Deadbolt Strike Width (in.)	1 in
Deadbolt Throw Length (in.)	1 in
Deadbolt Trim Ring Diameter (in.)	2.625 in
Faceplate Depth (in.)	1.188 in
Faceplate Height (in.)	5.75 in
Faceplate Width (in.)	2.75 in
Handle Grip Length (in.)	12 in
Inside Top Plate Length (in.)	1 in
Inside Top Plate Width (in.)	1 in
Knob/Lever Bore Hole Diameter (in.)	1 in
Knob/Lever Cross Bore Diameter (in.)	2.125 in
Knob/Lever Housing Height (in.)	2.625 in
Knob/Lever Housing Width (in.)	2.625 in
Knob/Lever Strike Height (in.)	2.25 in
Knob/Lever Strike Width (in.)	1.75 in
Knob/Lever Throw Length (in.)	0.5 in
Maximum Door Thickness (in.)	1.75 in
Minimum Door Thickness (in.)	1.375 in
Outside Bottom Handle Plate Length (in.)	1 in
Outside Bottom Handle Plate Width (in.)	1 in
Outside Key Plate Length (in.)	1 in
Outside Key Plate Width (in.)	1 in
Outside Top Handle Plate Length (in.)	1 in
Outside Top Handle Plate Width (in.)	1 in
Projection (in.)	1.188 in
Strike Plate Height (in.)	2.75 in
Strike Plate Width (in.)	1.25 in

---

Frequently Asked Questions (FAQ):

Q: How many user codes can I program?
A: Up to 16 user codes are supported on this SmartCode 915 package; some literature references up to 30 on select variants.

---

Q: What batteries does it use and are they included?
A: It requires 4 AA batteries; they are typically purchased separately.

---

Q: Will it fit my door?
A: Fits most standard doors 1-3/8 in. to 1-3/4 in. thick with an adjustable backset; door handing is universal.

---

Q: Does it require Wi‑Fi or smart hub?
A: No. This model operates as a standalone keypad lock (Not Connected).

---

Q: Can I rekey it to my existing Kwikset key?
A: Yes. SmartKey Security allows you to rekey the lock yourself in seconds to a KW1 key.

---

A Modern Touch of Security in Rich Venetian Bronze

The SmartCode 915 marries sleek technology with the warm, sculptural lines of the Avalon handleset and Tustin lever. Its glossy touchscreen becomes a chic focal point, while the sweeping handle adds a graceful, ergonomic gesture to the entry. Pair it with a natural wood door and matte black house numbers for a refined, contemporary statement. This set is a sophisticated essential—bringing luxury and confidence to every arrival.

---

Upgrade your entry with secure, keyless convenience—add the SmartCode 915 Avalon set to your door today.
