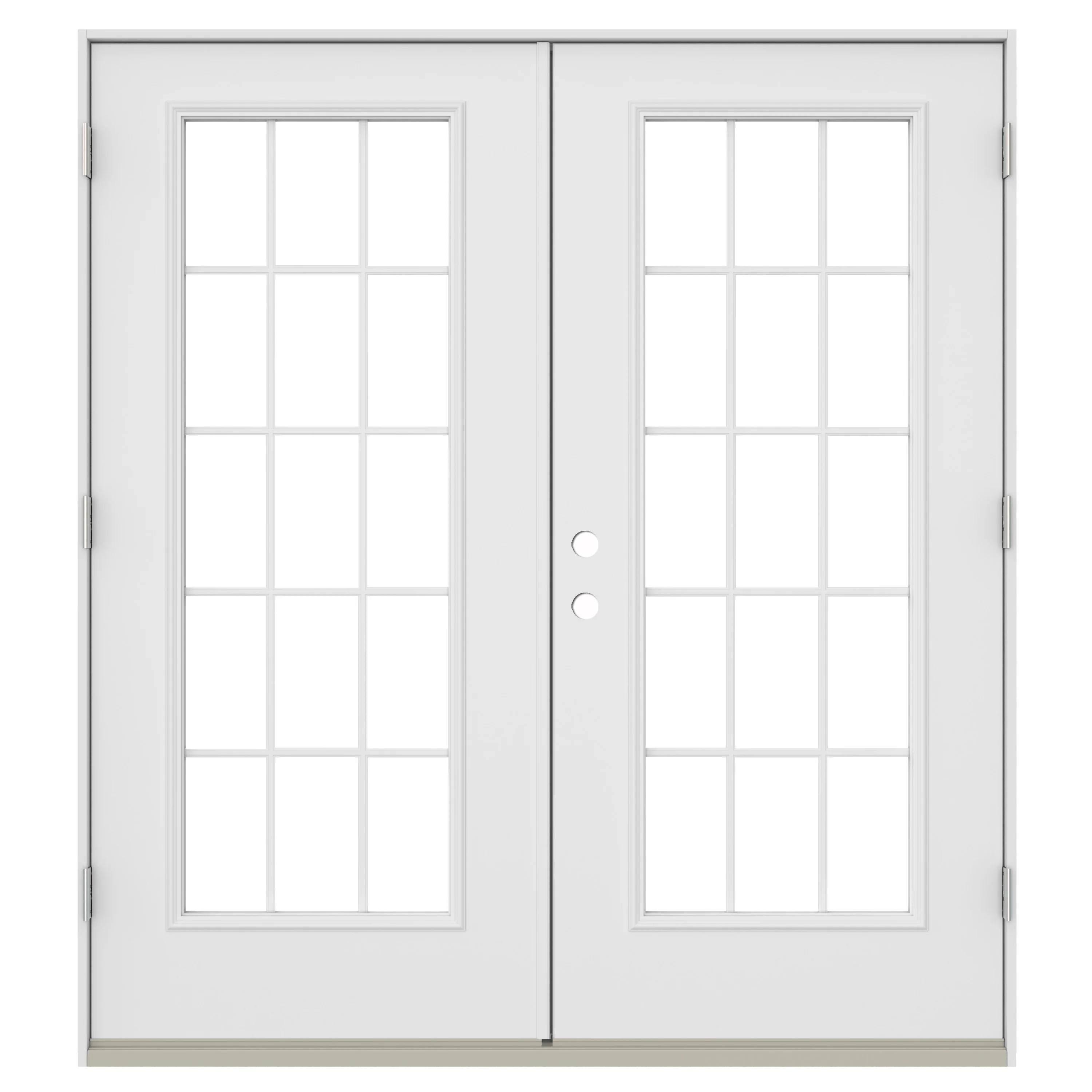

JELD-WEN 72-in x 80-in 4-9/16-in Low-E External Grilles Primed Steel French Left-Hand Inswing Double Patio Door
Primed Steel French Double Patio Door, Low‑E Glass, Left‑Hand Inswing
A durable, energy-efficient French double patio door crafted from primed steel with Low‑E tempered glass and external grilles. Prehung with 4-9/16-in jamb, it delivers classic style, smooth operation, and a tight weather-sealed fit for year-round comfort.
Key Features:
- Durable Steel Construction: Strong, secure primed steel resists wear while offering timeless French-door style
- Energy Efficiency: Low‑E tempered glass and full weatherstripping help maintain indoor comfort in all climate zones
- Smooth Operation: High‑performance ball-bearing hinges provide easy, quiet opening and closing
- Authentic Divided‑Lite Look: External grilles adhered to glass add charm and curb appeal
- Ready to Finish & Install: Prehung frame with neutral baked-on primer and predrilled double bore for quick hardware setup
Specifications Table:
| Specification | Details |
|---|---|
| Common Size (W x H) | 72-in x 80-in |
| Actual Width (Inches) | 71.5 |
| Actual Height (Inches) | 79.5625 |
| Actual Depth (Inches) | 4.5625 |
| Jamb Depth | 4-9/16-in |

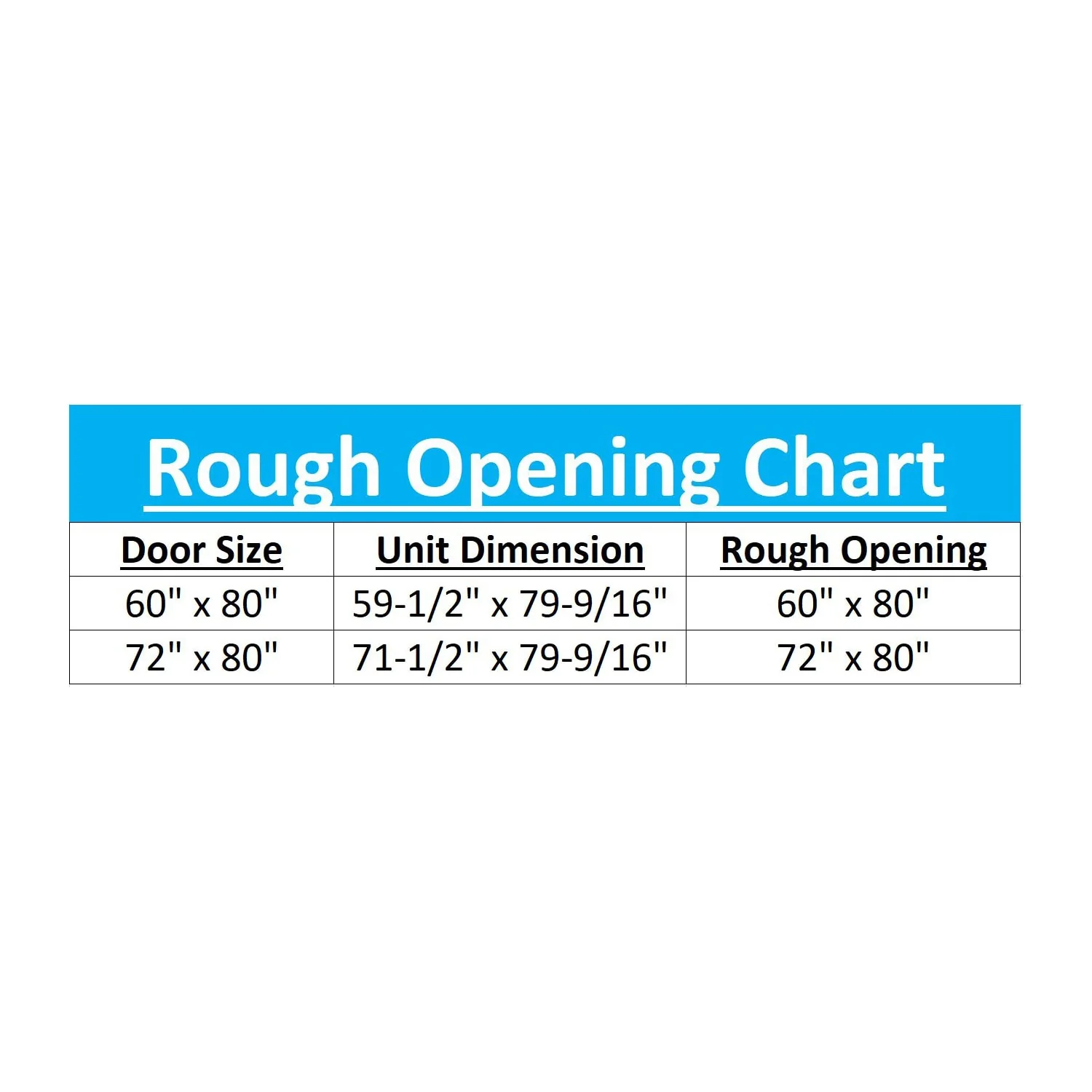

| Rough Opening Width (Inches) | 72 |
| Rough Opening Height (Inches) | 80.0625 |
| Configuration | Double door |
| Door Type | French |
| Material | Steel |
| Exterior Color/Finish | Primed |
| Interior Color/Finish | Primed |
| Color/Finish Family | Off-white |
| Glass Insulation | Low‑E |
| Glass Strength | Tempered |
| Glass Style | External grilles |
| Handing | Left-hand inswing |
| Handle(s) Included | No |
| Locking System Included | No |
| Lockset Bore | Yes |
| Hardware Finish | N/A (no handle) |
| Handle Finish | N/A (no handle) |
| Brickmould Included | Yes |
| Core Type | Insulating core |
| Weatherstripping Included | Yes |
| Screen Included | No |
| Pet Door Included | No |
| Solar Heat Gain Coefficient (SHGC) | 0.25 |
| U-Factor | 0.32 |

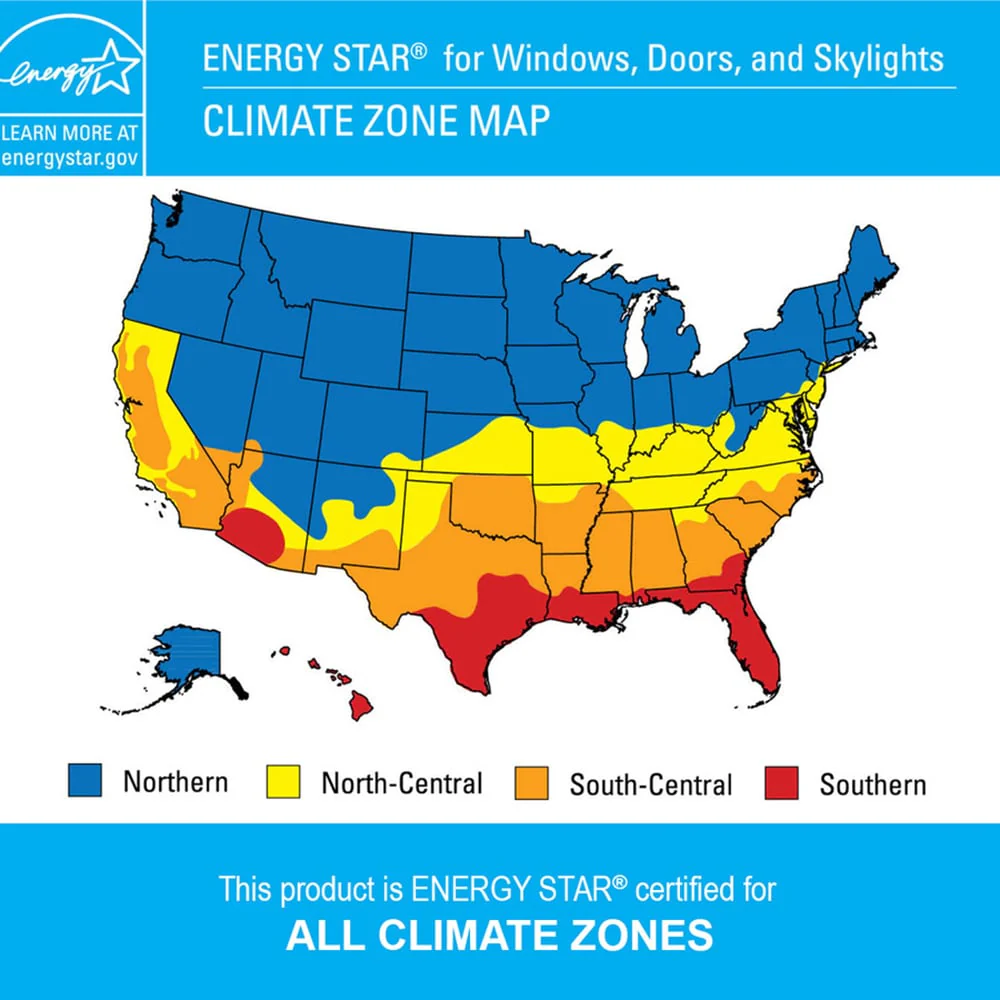

| ENERGY STAR Certified Zones | Northern, North/Central, South/Central, Southern |
| Warranty | 10-year limited |
| Weight (lbs.) | 89.36 |
Frequently Asked Questions (FAQ):
Q: Is the door prehung and ready for installation?
A: Yes, it arrives prehung in the frame with brickmould included for easier installation.
Q: Does it include a handle or lock?
A: No; the door is predrilled with a double bore—purchase handle/lock separately.

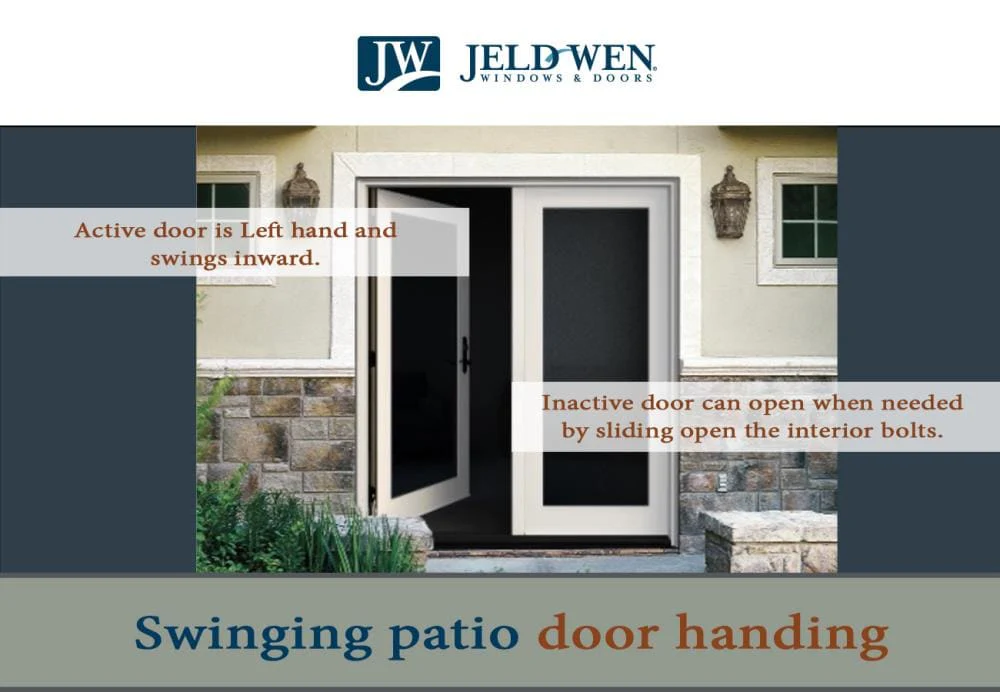

Q: What is the handing and swing direction?
A: Left-hand inswing; the active door swings inward, and the inactive door can open via interior bolts.
Q: Is this door ENERGY STAR certified?
A: Yes, it is certified across all U.S. climate zones.
Q: What maintenance or finishing is required?
A: It comes with two coats of low‑sheen primer; paint with your preferred finish color after installation.
Timeless French Elegance Meets Everyday Performance
This steel French patio door ushers in luminous daylight while framing your view with crisp, classic grilles. The primed finish is a blank canvas—dress it in deep charcoal or creamy white to harmonize with your façade. Style it with a sculptural handle set and layered planters for a welcoming threshold. It’s a refined essential that elevates both curb appeal and comfort.
Upgrade your patio entry with this energy‑smart, primed steel French door—order today for a beautiful, secure, and easy install.
