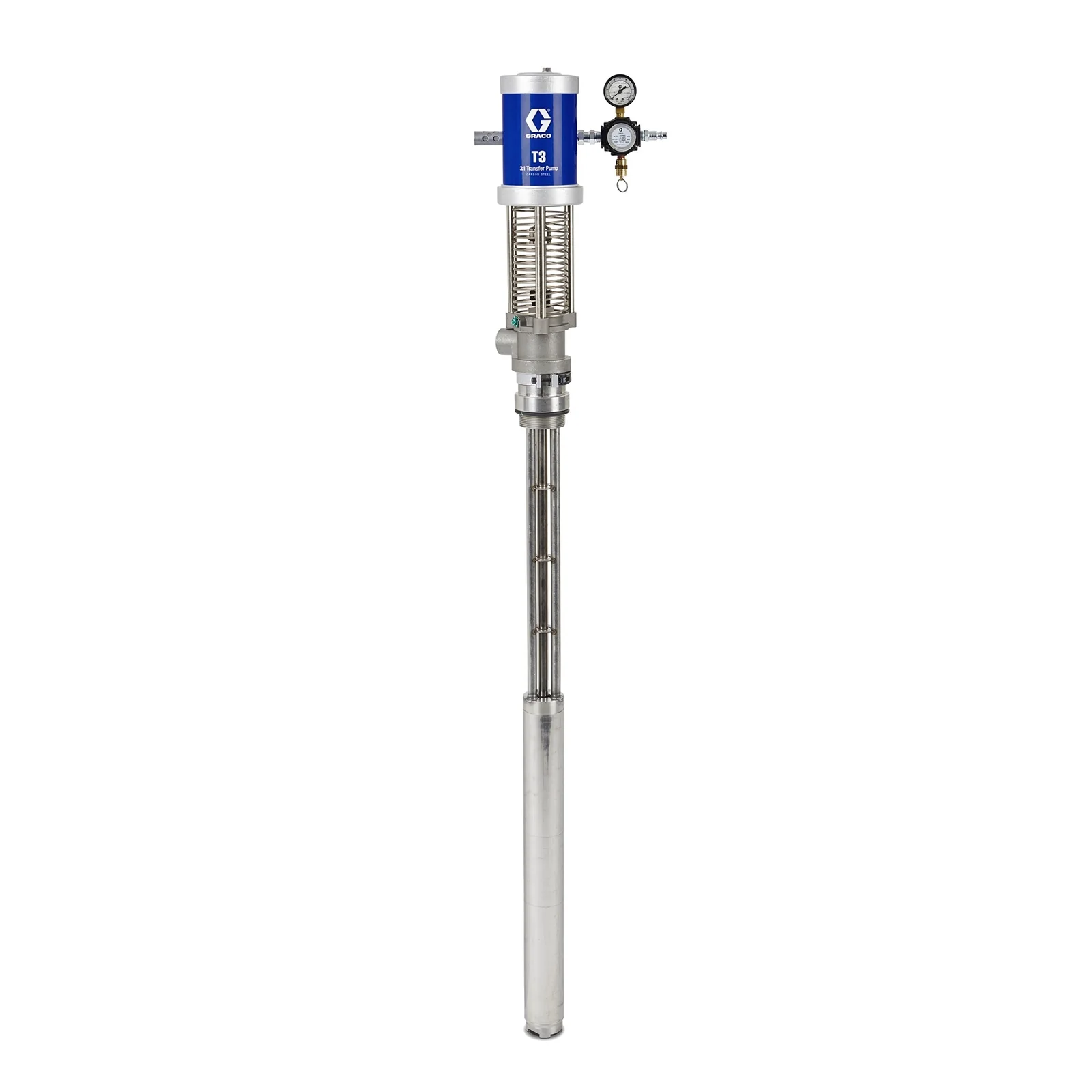

Graco 24Z834 T3 Transfer/Supply Pump (Carbon Steel), 3:1 Ratio, 4.5 GPM
Graco T3 3:1 transfer pump
The Graco T3 Transfer Pump (24Z834) is a pneumatic piston supply pump designed to move A and B materials to Reactor spray systems. Its 3:1 ratio delivers the required fluid pressure using less air pressure, with a quieter, low-maintenance Merkur air-motor for dependable performance on spray-foam jobs.
Key Features:
- Efficient 3:1 Pump Ratio: Achieves needed fluid pressure while using less air pressure than lower-ratio setups.
- Quieter Operation: Designed to run significantly quieter than prior T2 transfer pumps for a more comfortable work environment.
- Low-Maintenance Air Motor: Merkur air-motor uses pneumatic pilot-valve switching (no mechanical reversing mechanism).
- High Output Material Transfer: Up to 4.5 GPM max flow to keep Reactor spray systems supplied.
- Material Compatibility: Built for polyurethane foam and polyurea transfer applications with carbon-steel wetted components.
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 24Z834 |
| Model | T3 |
| Series | Carbon Steel |
| Pump Type | Pneumatic Piston Pump |
| Package Options | Bare |
| Pump Ratio | 3:1 |
| Application | Industrial |
| Compatible Materials | Polyurethane Foam; Polyurea |
| Material | Carbon Steel |
| Wetted Material | Carbon Steel |
| Air Inlet Size | 1/4 in (6.35 mm) |
| Air Inlet Thread Type | NPT |
| Air Inlet Thread Gender | Female |
| Fluid Outlet Size | 3/4 in (19.05 mm) |
| Fluid Outlet Thread Type | NPT |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Inlet Pressure | 100 psi (0.69 MPa / 6.9 bar / 690 kPa) |
| Maximum Working Pressure | 315 psi (2.2 MPa / 21.7 bar / 2170 kPa) |
| Maximum Flow Rate | 4.5 gpm (17.03 l/min) |
| Maximum Operating Temperature | 190°F (88°C) |
| Sound Power Level | 82.8 dB(A) |
| Weight | 22 lb (10 kg) |
| Overall Height | 50.3 in |
Frequently Asked Questions (FAQ):
Q: What is this pump used for?
A: It’s a transfer/supply pump used to move A and B materials to Graco Reactor spray systems.
Q: What does the 3:1 ratio mean?
A: The pump can provide higher fluid pressure relative to air input pressure, helping deliver required fluid pressure while using less air pressure.
Q: What materials is it compatible with?
A: It’s listed as compatible with polyurethane foam and polyurea.
Q: What are the air and fluid connection sizes?
A: Air inlet is 1/4 in NPT (female) and fluid outlet is 3/4 in NPT (female).
Q: What are the key pressure and flow limits?
A: Max air inlet pressure is 100 psi, max working pressure is 315 psi, and max flow rate is 4.5 GPM.
Industrial Elegance, Engineered to Perform
There’s a certain beauty in equipment that’s unapologetically purposeful—clean lines, confident proportions, and materials that mean business. The Graco T3 pairs a carbon-steel presence with a quieter, more refined pneumatic heart, bringing a sense of calm control to high-output work. Style it where performance lives—organized, accessible, and ready—so your workflow feels as considered as a well-designed space. It’s the kind of essential that makes the entire system feel more elevated, more effortless, and undeniably more luxe.
Upgrade your spray-foam workflow with the Graco 24Z834 T3 transfer pump for quieter, high-output material delivery.
Original: $1,581.10
-70%$1,581.10
$474.33Product Information
