Everbilt 3/4 HP Sewage Ejector Pump, Cast Iron, 2 in. Solids Handling
3/4 HP Cast Iron Sewage Ejector Pump
Heavy-duty submersible sewage pump built with cast iron housing and a PSC motor for efficient, quiet operation. Handles up to 2-inch solids with a 2 in. NPT discharge, ideal for basement sewage systems and high-capacity wastewater applications.
Key Features:
- Energy-Efficient Motor: PSC motor delivers strong performance with reduced energy use
- Heavy-Duty Build: Cast iron housing and impeller for durability and long service life

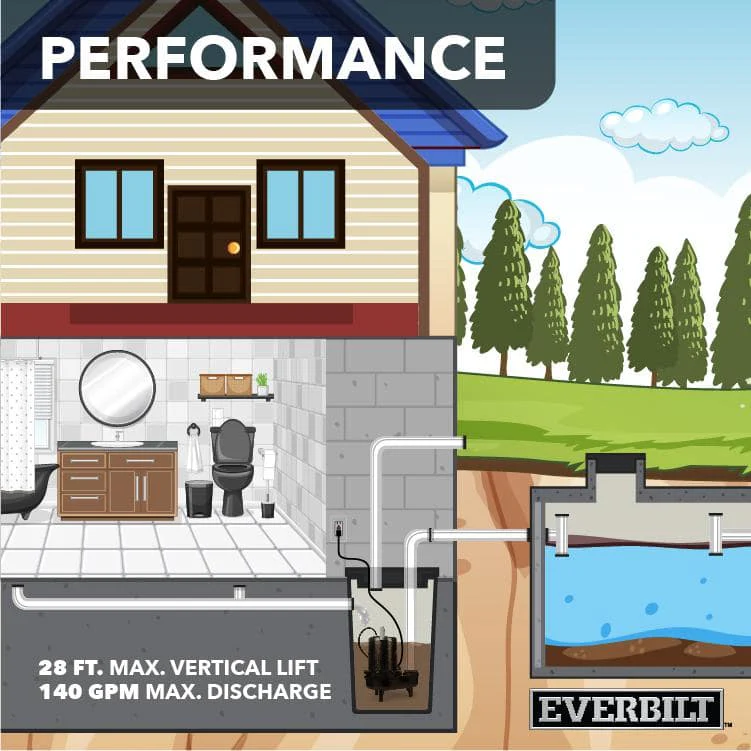

- High Capacity: Up to 140 GPM (8400 GPH) and 28 ft. max vertical lift
- 2 in. Solids Handling: Designed to pass up to 2-inch solids to reduce clogs
- Automatic Operation: Piggyback tethered float switch enables automatic or manual control
Specifications Table:
| Specification | Details |
|---|---|
| Horsepower | 3/4 HP |
| Voltage | 115V AC |
| Amperage | 10.8 A |
| Cord Length | 10 ft |
| Max Discharge Flow @ 0 ft | 140 GPM (8400 GPH) |
| Discharge Flow @ 10 ft | 110 GPM (6600 GPH) |
| Max Vertical Lift (Head) | 28 ft |
| Max Pressure | 12.12 PSI |
| Solids Capacity | 2 in. |
| Outlet Connection | 2 in. NPT threaded female |
| Pump Switch Type | Tethered piggyback float |
| Features | Non-clogging, solids handling, thermal overload protection |
| Housing Material | Cast iron |
| Impeller Material | Cast iron |
| Power Type Required | AC |
| Minimum Basin Diameter | 18 in. or more |
| Working Temperature Range | 33°F to 104°F |

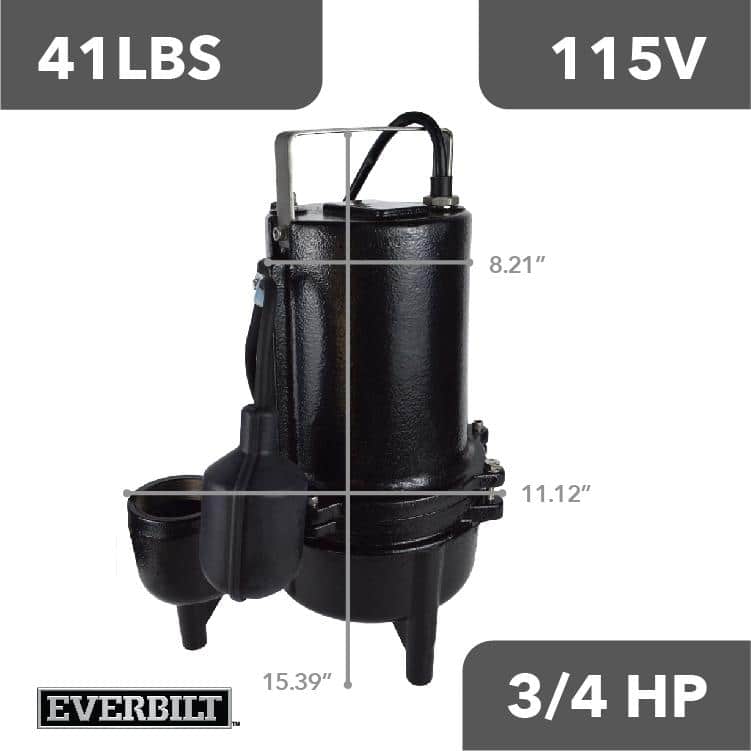

| Product Dimensions | 8.21 in W x 11.12 in D x 15.39 in H |
| Certifications | CSA Certified |
| Manufacturer Warranty | 3-year |
| Product Weight | 40 lb |
Frequently Asked Questions (FAQ):
Q: What basin size is recommended?
A: Use a sump/sewage basin with a minimum diameter of 18 inches or larger.
Q: What power supply does it require?
A: 115V AC; the pump draws approximately 10.8 amps during operation.
Q: Is the pump submersible?
A: Yes, it is fully submersible for quiet operation.
Q: What discharge connection is needed?
A: 2-inch NPT threaded female outlet; pair with appropriate check valve and PVC adapters.
Q: Does it have thermal protection?
A: Yes, the motor includes thermal overload protection.
Industrial Strength, Seamless Utility
This cast-iron workhorse brings robust, refined utility to lower-level baths and laundry rooms, quietly moving waste with confidence. The sculpted, matte housing and compact profile feel purposeful and clean, letting mechanical beauty complement functional spaces. Style it with a neatly organized basin and labeled plumbing for a crisp, professional look. It’s the kind of hidden essential that elevates everyday living with reliable, luxurious performance.
Upgrade to dependable, high-capacity wastewater management—choose the Everbilt 3/4 HP Sewage Ejector Pump today.
Original: $584.79
-70%$584.79
$175.44Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
3/4 HP Cast Iron Sewage Ejector Pump
Heavy-duty submersible sewage pump built with cast iron housing and a PSC motor for efficient, quiet operation. Handles up to 2-inch solids with a 2 in. NPT discharge, ideal for basement sewage systems and high-capacity wastewater applications.
Key Features:
- Energy-Efficient Motor: PSC motor delivers strong performance with reduced energy use
- Heavy-Duty Build: Cast iron housing and impeller for durability and long service life
- High Capacity: Up to 140 GPM (8400 GPH) and 28 ft. max vertical lift
- 2 in. Solids Handling: Designed to pass up to 2-inch solids to reduce clogs
- Automatic Operation: Piggyback tethered float switch enables automatic or manual control
Specifications Table:
| Specification | Details |
|---|---|
| Horsepower | 3/4 HP |
| Voltage | 115V AC |
| Amperage | 10.8 A |
| Cord Length | 10 ft |
| Max Discharge Flow @ 0 ft | 140 GPM (8400 GPH) |
| Discharge Flow @ 10 ft | 110 GPM (6600 GPH) |
| Max Vertical Lift (Head) | 28 ft |
| Max Pressure | 12.12 PSI |
| Solids Capacity | 2 in. |
| Outlet Connection | 2 in. NPT threaded female |
| Pump Switch Type | Tethered piggyback float |
| Features | Non-clogging, solids handling, thermal overload protection |
| Housing Material | Cast iron |
| Impeller Material | Cast iron |
| Power Type Required | AC |
| Minimum Basin Diameter | 18 in. or more |
| Working Temperature Range | 33°F to 104°F |
| Product Dimensions | 8.21 in W x 11.12 in D x 15.39 in H |
| Certifications | CSA Certified |
| Manufacturer Warranty | 3-year |
| Product Weight | 40 lb |
Frequently Asked Questions (FAQ):
Q: What basin size is recommended?
A: Use a sump/sewage basin with a minimum diameter of 18 inches or larger.
Q: What power supply does it require?
A: 115V AC; the pump draws approximately 10.8 amps during operation.
Q: Is the pump submersible?
A: Yes, it is fully submersible for quiet operation.
Q: What discharge connection is needed?
A: 2-inch NPT threaded female outlet; pair with appropriate check valve and PVC adapters.
Q: Does it have thermal protection?
A: Yes, the motor includes thermal overload protection.
Industrial Strength, Seamless Utility
This cast-iron workhorse brings robust, refined utility to lower-level baths and laundry rooms, quietly moving waste with confidence. The sculpted, matte housing and compact profile feel purposeful and clean, letting mechanical beauty complement functional spaces. Style it with a neatly organized basin and labeled plumbing for a crisp, professional look. It’s the kind of hidden essential that elevates everyday living with reliable, luxurious performance.
Upgrade to dependable, high-capacity wastewater management—choose the Everbilt 3/4 HP Sewage Ejector Pump today.
