Everbilt 1/3 HP Cast Iron Submersible Sump Pump, HDS30, 3510 GPH, 10 ft Cord
1/3 HP Cast Iron Submersible Sump Pump

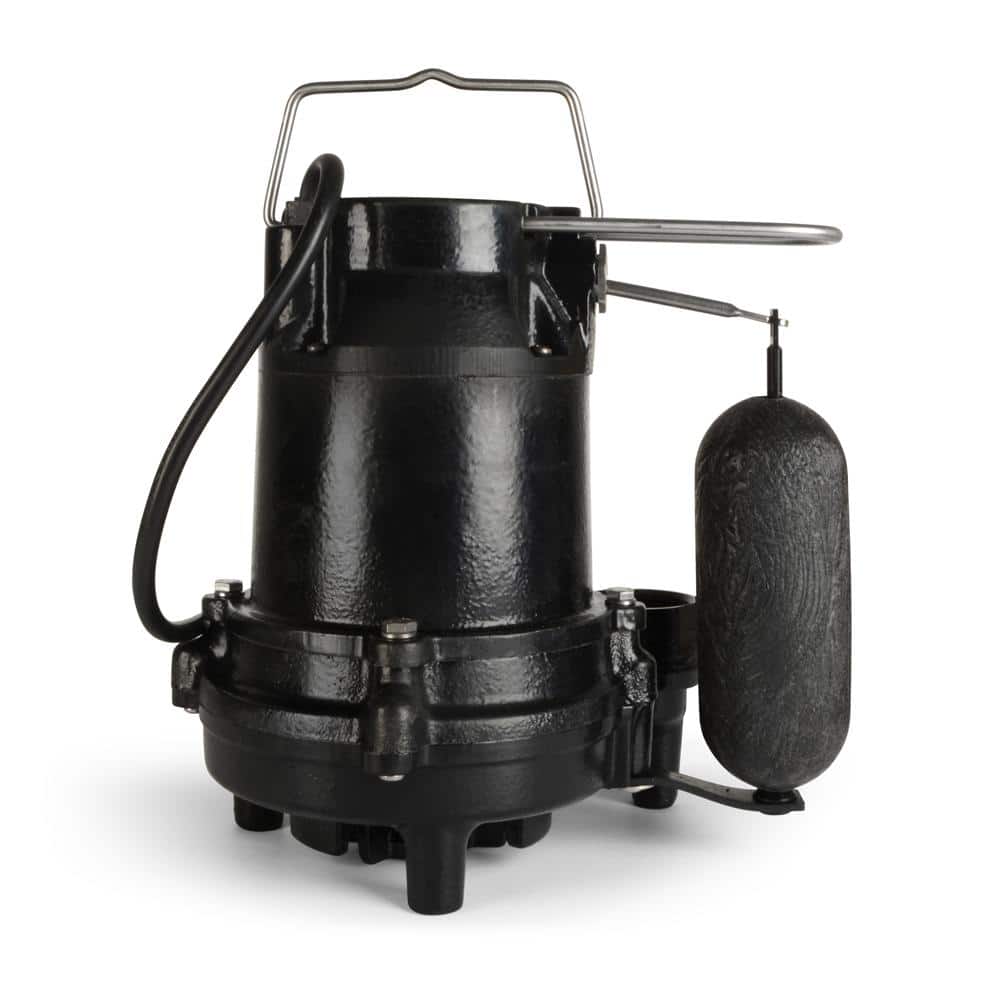

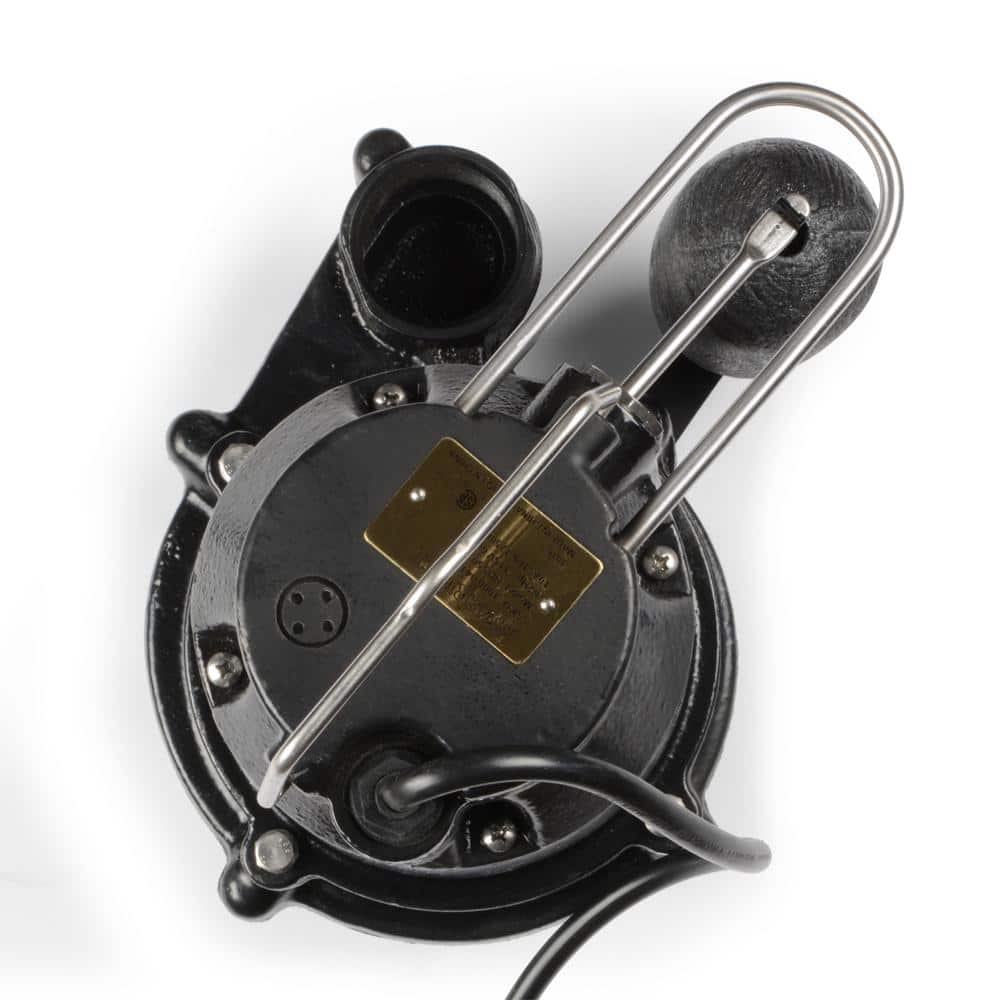

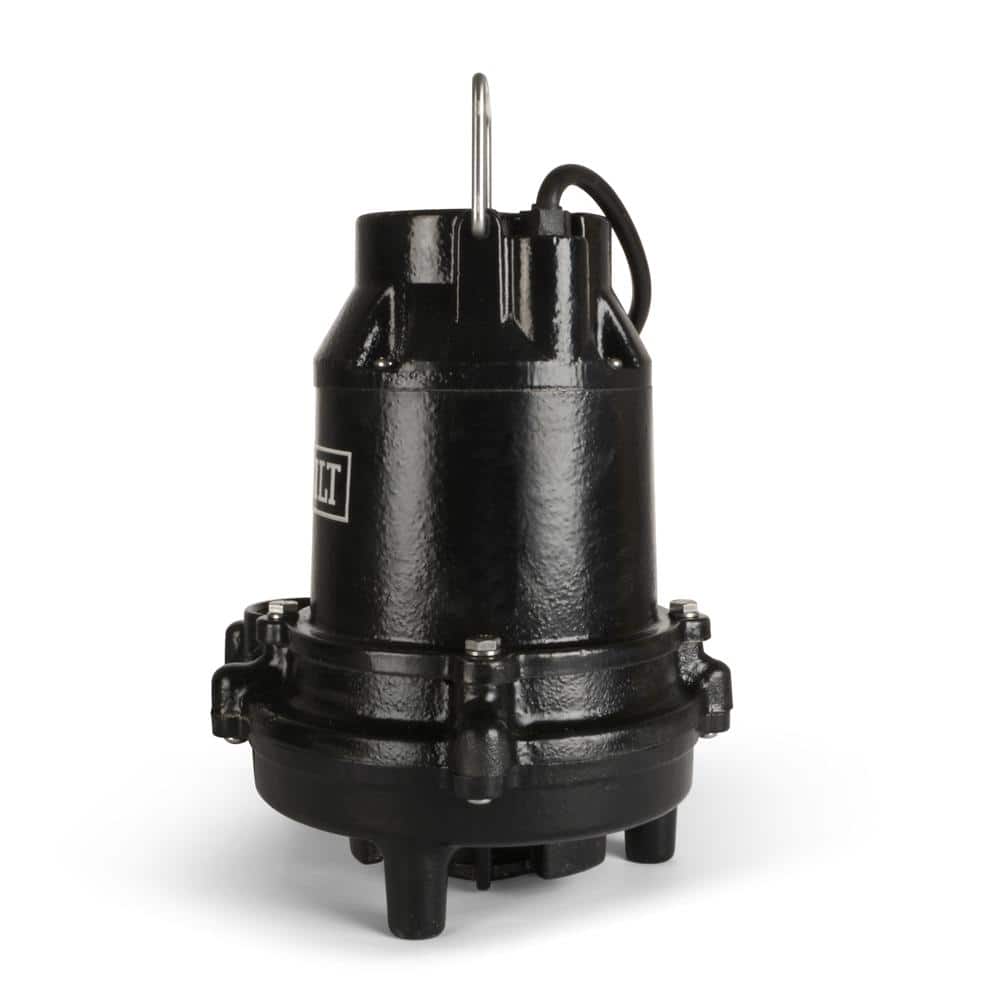

Heavy-duty Everbilt submersible sump pump built with cast iron housing and a PSC motor for efficient, continuous-duty operation. Moves up to 3510 GPH with a non-clog vortex impeller and vertical float switch, ideal for basement sumps and dewatering.
Key Features:
- Heavy-Duty Construction: Cast-iron housing with corrosion-resistant, powder-coated epoxy finish and stainless steel fasteners
- Reliable Performance: PSC oil-filled motor with thermal overload protection for continuous-duty use
- High Flow Capacity: Up to 3510 GPH at 0 ft; 44 GPM at 10 ft; max vertical lift 24 ft
- Non-Clog Operation: Vortex impeller passes 1/2 in. solids for sump and effluent applications
- Easy Setup: 1-1/2 in. FPT discharge and 10 ft power cord with vertical float switch
Specifications Table:
| Specification | Details |
|---|---|
| Horsepower | 1/3 HP |
| Amperage | 6.5 A |
| Voltage | 115 V AC |
| Power Type | AC |
| Cord Length | 10 ft |
| Discharge Flow @ 0 ft | 3510 GPH (58.5 GPM) |
| Discharge Flow @ 10 ft | 2640 GPH (44 GPM) |
| Discharge Flow @ 15 ft | 31 GPM |
| Maximum Vertical Lift | 24 ft |
| Maximum Working Temperature | 104 F |
| Minimum Working Temperature | 33 F |
| Outlet Diameter Connection | 1-1/2 in. FPT |
| Pump Switch Type | Vertical float |
| Housing Material | Cast iron |
| Impeller Material | Plastic; vortex non-clogging design |
| Features | Corrosion resistant; Thermal overload protection |
| Handles Solids | Up to 1/2 in. |
| Product Dimensions (W x H x D) | 8.55 in x 10 in x 10.62 in |
| Switch-On Height | 7.5 in |
| Switch-Off Height | 3.25 in |
| Pack Size | 1 |
| Manufacturer Warranty | 3-year limited |
| Product Weight | 24.14 lb |
Frequently Asked Questions (FAQ):
Q: What basin size is required?
A: Fits sump basins with a minimum diameter of approximately 14-1/2 to 17-7/8 in.
Q: What size discharge does it use?
A: 1-1/2 in. female pipe thread (FPT) outlet.
Q: How high can it lift water?
A: Maximum vertical lift is 24 ft.
Q: Can it handle solids?
A: Yes, it passes up to 1/2 in. solids with its vortex impeller.
Q: What power is required?
A: 115V AC; draws about 6.5 amps during operation.
Industrial-strength utility with a clean, compact silhouette
This cast-iron sump pump introduces a quiet confidence to utility spaces, its sculptural form framed by a sleek vertical float. I love the powder-coated black finish—durable yet refined—anchoring a basement with purposeful design. Pair it with neatly organized piping and a crisp utility sink to create a streamlined service zone. It’s the discreet powerhouse that underpins a serene, well-appointed home.
Protect your basement with pro-grade performance—add the Everbilt 1/3 HP cast iron sump pump to your system today.
