DELTA Linden Venetian Bronze Shower Bar System with 3-Way Diverter, 4.94-in Showerhead (Pressure-Balanced Valve Included)
Linden Venetian Bronze Shower Bar System with Valve
Delta’s Linden shower bar system delivers a coordinated shower experience with a 5-spray showerhead, 3-setting hand shower, and integrated 3-way diverter. Finished in Venetian Bronze, it includes a pressure-balanced valve to maintain safe water temperature and a slide bar for adjustable hand shower height.
Key Features:

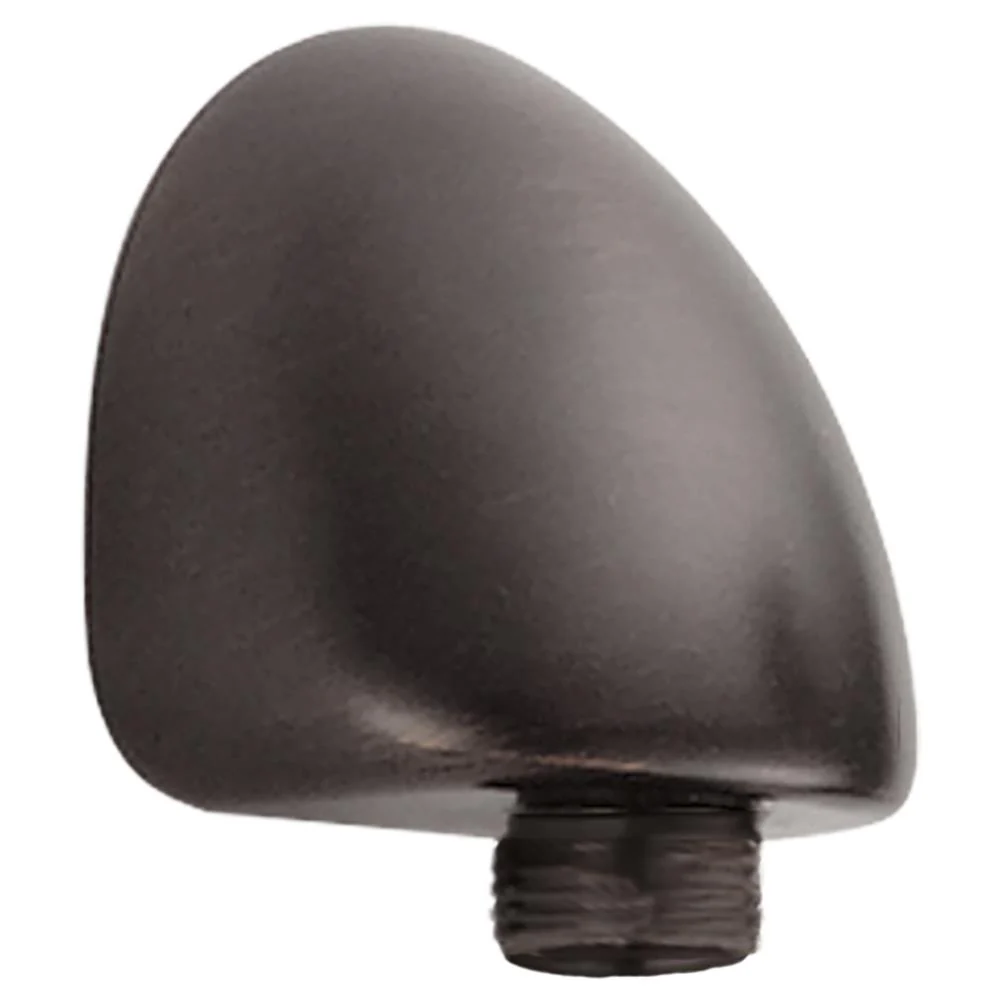

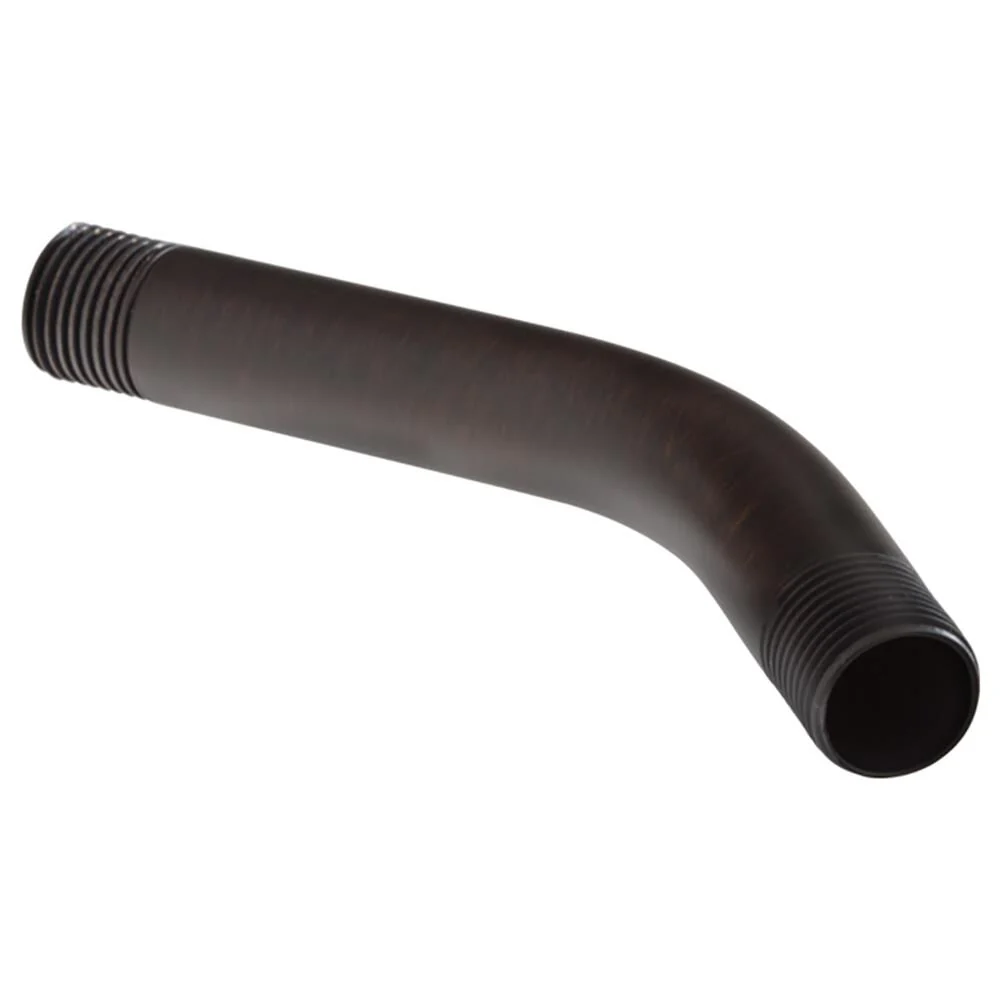

- Complete Kit: Includes showerhead, hand shower with slide bar, valve trim with integrated diverter, rough-in valve, shower arm, flange, wall elbow, and hose
- Consistent Temperature: Monitor pressure-balanced valve keeps water within ±3°F to protect from sudden pressure changes
- Flexible Spray Options: 5-function showerhead and 3-setting hand shower offer full body, massage, and drenching sprays
- Water-Saving Performance: WaterSense-labeled system with 1.75 GPM max flow on both showerhead and hand shower
- Adjustable Reach: 60–82 in stretchable metal hose and sliding bar accommodate users of different heights
Specifications Table:
| Specification | Details |
|---|---|
| Collection Name | Linden |
| Series Name | Linden |
| Type | Shower bar system |
| Fixture Color Family | Brown |
| Fixture Finish | Oil-rubbed |
| Manufacturer Color/Finish | Venetian Bronze |
| Actual Depth (Inches) | 14.625 |
| Actual Height (Inches) | 57.50 |
| Actual Width (Inches) | 14.625 |
| Shower Head Diameter (Inches) | 4.94 |
| Handheld Shower Head Diameter (Inches) | 5 |
| Hose Length (Inches) | 60 (stretches to 82) |
| Integrated Adjustable Height Slide Bar | Yes |
| Total Bar/Panel Length (Inches) | 24 |
| Total Bar/Panel Width (Inches) | 6.5 |
| Water Source to Valve Length (Inches) | 24 |
| ADA Compliant | No |
| Adjustable Head | No |
| Antimicrobial | No |
| Body Jets Included | No |
| Commercial/Residential | Commercial/Residential |
| Control Panel Included | No |
| Detachable Head | Yes |
| Displays Temperature | No |
| Diverter Type | 3-way |
| Dual Head | No |
| Easy-Cleaning Nozzles | Yes |
| Handheld Pause/Trickle Control | No |
| Handle Type | Lever |
| High Pressure | No |
| Hose Material | Metal |
| Hub Required | No |
| LED Light | No |
| Low Flow | Yes |
| Max Flow Rate (Handheld) | 1.75 GPM (6.6 LPM) |
| Max Flow Rate (Showerhead) | 1.75 GPM (6.6 LPM) |
| Number of Hand Showers Included | 1 |
| Number of Handheld Spray Patterns | 3 |
| Number of Shower Head Spray Patterns | 5 |
| Number of Shower Heads Included | 1 |
| Number of Spray Settings | 5 |
| Projection from Wall (Inches) | 14.625 |
| Shower Head Material | Metal |
| Shower Head Pause/Trickle Control | Yes |
| Spray Pattern | Adjustable |
| Steam Feature | No |
| Thread Tape Included | No |
| Valve Included | Yes |
| Valve Type | Pressure-balanced valve |
| WaterSense Labeled | Yes |
| App/Bluetooth/Smart/Wi‑Fi Compatibility | No |
| Works with Voice Assistants | No |
| Warranty | Limited lifetime |
| CA Residents: Prop 65 Warning(s) | Yes |
| UNSPSC | 30181500 |
Frequently Asked Questions (FAQ):
Q: Is the valve included?
A: Yes. A pressure-balanced rough-in valve is included along with the valve trim and integrated 3-way diverter.
Q: How many spray settings are there?
A: The showerhead has 5 spray patterns and the hand shower has 3 settings.
Q: What is the finish?
A: Venetian Bronze with an oil-rubbed appearance, part of Delta’s Linden collection.
Q: Does it save water?
A: Yes, it is WaterSense labeled with a maximum flow rate of 1.75 GPM for both the showerhead and hand shower.
Q: Can the hand shower height be adjusted?
A: Yes. The wall bar includes an adjustable slide to position the hand shower for tall or short bathers.
Warm Bronze, Tailored Flow
The Linden shower system wraps the bath in a rich Venetian Bronze that feels timeless yet tailored. Its sculpted levers and softly flared forms add a graceful note that elevates classic and transitional spaces alike. Style it with creamy stone tile and aged brass accents to echo its warm undertones and create a spa-caliber retreat. A must-have for luxuriant daily rituals, it marries beauty with intelligent, pressure-balanced performance.
Upgrade to the Linden system today for a coordinated, temperature-safe shower with luxurious spray options in a rich Venetian Bronze finish.
