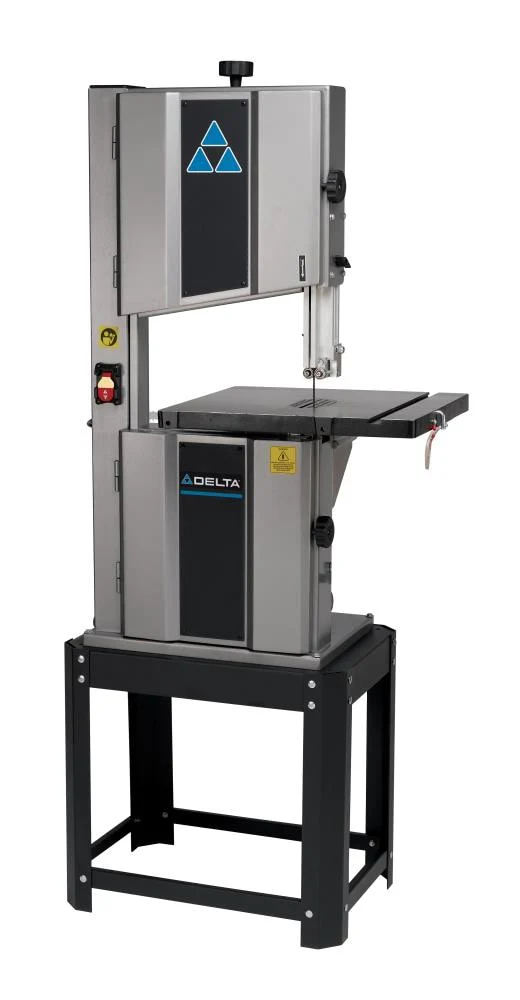

DELTA 13.625-in 9-Amp Stationary Band Saw, 1-HP, 2-Speed, Cast-Iron Table
DELTA 13.625-in Stationary Band Saw
A steel-framed, 13.625-in throat band saw built for precision and durability. Powered by a 1 HP TEFC induction motor with two speeds, it handles wood and select metals on a large, precision-ground cast iron table with T-slot miter capability.
Key Features:
- Steel Frame Accuracy: Heavy-duty steel design minimizes flex for precise cuts
- Durable Table Support: Aluminum trunnion supports a precision-ground cast iron table
- Powerful Motor: 1 HP TEFC induction motor, 115/230V, delivers reliable performance
- Two-Speed Versatility: 1620 and 3340 FPM for cutting various materials and thicknesses
- Smooth Operation: Poly V-belt and balanced rubber-coated aluminum wheels improve tracking
Specifications Table:
| Specification | Details |
|---|---|
| Throat Depth (Inches) | 13.625 |
| Amperage | 9 |
| Horsepower (HP) | 1 |
| Voltage (Volts) | 115/230 (1 phase) |
| Motor Type | TEFC induction |
| Speeds (FPM) | 1620 and 3340 |
| Cutting Capacity Height (Inches) | 6 |
| Table Material | Cast iron, precision ground |
| Table Size (Inches) | 15.75 L x 18.875 W |

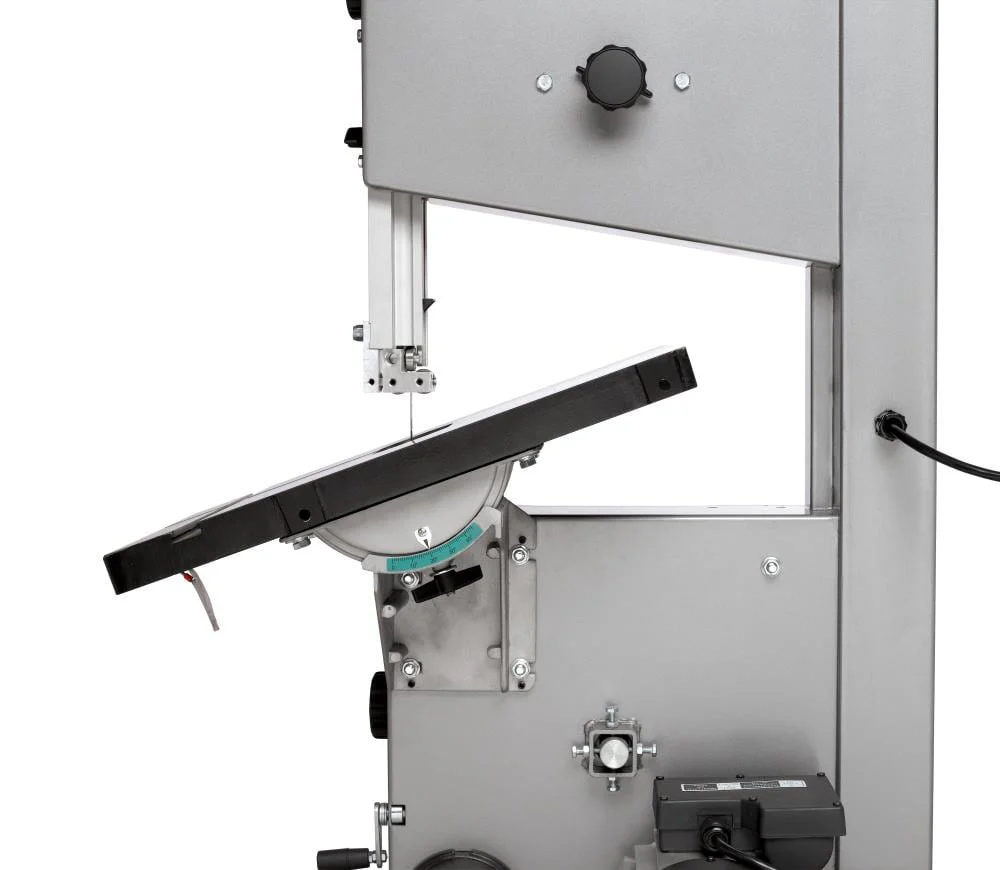

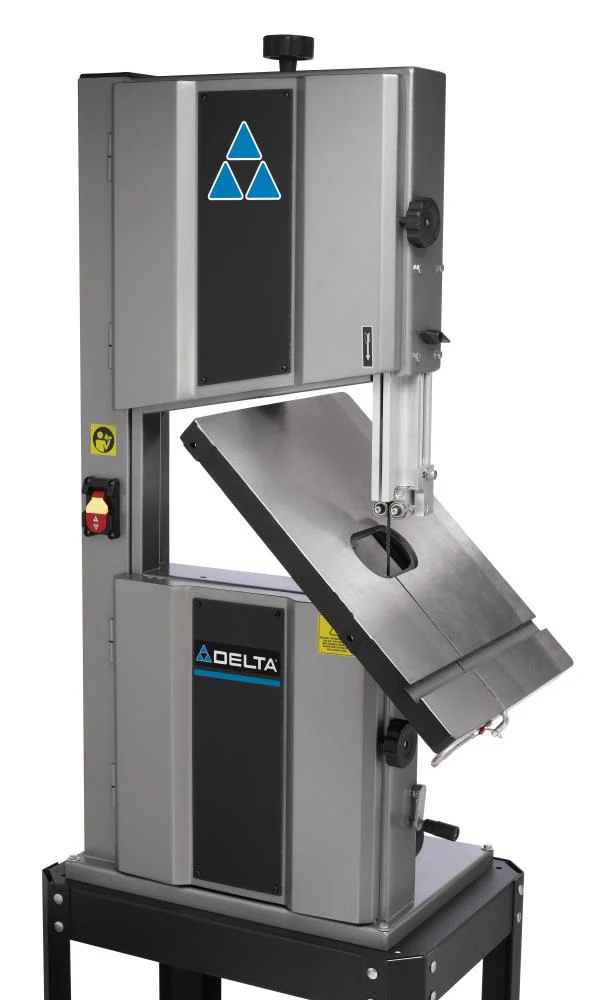

| Table Tilt Range | 3° left, 45° right with positive stop at 90° |
| Table Height (Inches) | 40.75 |
| Frame Material | Steel |
| Wheels | Rubber-coated aluminum, precision balanced |
| Drive | Poly V-belt |
| Dust Port Diameter (Inches) | 4 |
| Blade Length Max | 93-1/2 in |
| Blade Length Min | 91-1/2 in |
| Blade Width Max | 3/4 in |
| Blade Width Min | 1/8 in |
| Built-In Light | No |
| Color/Finish | Gray |
| Package Contents | Saw, stand, 4 in. dust port, 93.5 in. blade |
| Height (Inches) | 65.5 |
| Length (Inches) | 23 |
| Width (Inches) | 16 |
| Micro Adjust Blade Guides (Top/Bottom) | Yes |
| Motor Bearings | Ball bearings |
| Miter Slot | Standard T-slot accepts 3/4 in x 3/8 in miter gauges |
| Warranty (Parts) | 5-year |
| UNSPSC | 23101500 |
| CA Prop 65 | Yes |
Frequently Asked Questions (FAQ):
Q: What materials can it cut?
A: Primarily wood; with appropriate blades and speed selection, it can cut certain non-ferrous metals and plastics.
Q: What is the cutting capacity?
A: Up to 13-5/8 inches wide (throat) and 6 inches thick.
Q: Does it include a stand and dust port?
A: Yes—stand included along with a 4-inch dust port for collection.
Q: What blade sizes does it accept?
A: Standard 93-1/2 in. maximum length (minimum 91-1/2 in.) and blade widths from 1/8 in. to 3/4 in.
Q: What is the warranty?
A: 5-year parts warranty from the manufacturer.
Industrial Precision Meets Workshop Elegance
This band saw anchors the workspace with a confident, steel-framed silhouette and a generous cast-iron table that invites craftsmanship. The balanced, rubber-coated wheels and clean geometry give it a refined, industrial poise. Style it with walnut offcuts and brushed-metal accents to echo its cool gray palette. A true essential for a polished, high-performance studio.
Elevate your shop with DELTA’s precise, two-speed band saw—order now to cut cleaner, faster, and more confidently.
